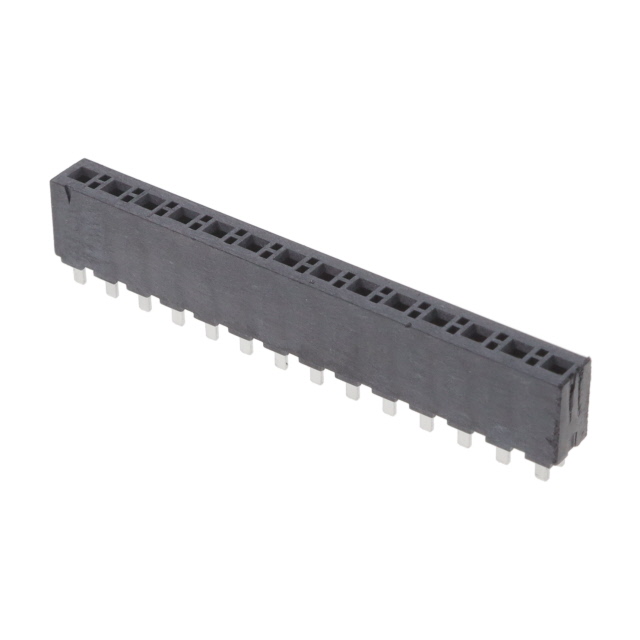

FHP-14-01-T-S

Active

Samtec Inc.

CONN RCPT 14POS 0.156 TIN PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 14POS 0.156 TIN PCB

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Connector Type	Insulation Material	Fastening Type	Contact Shape	Contact Type	Number of Positions	Insulation Color	Insulation Height [custom]	Insulation Height [custom]	Number of Rows	Mounting Type	Number of Positions Loaded	Contact Finish - Post	Termination	Features	Insulation Height	Insulation Height
Samtec Inc. FHP-14-01-T-S	105 ░C	-55 °C	Phosphor Bronze	0.156 in	3.96 mm	0.102 in	2.6 mm	Receptacle	Liquid Crystal Polymer (LCP)	Push-Pull	Square	Female Socket	14	Black	0.35 in	8.89 mm	1	Through Hole	All	Tin	Solder
Samtec Inc. FHP-14-02-T-S-LC-K	105 ░C	-55 °C	Phosphor Bronze	0.156 in	3.96 mm			Receptacle	Liquid Crystal Polymer (LCP)	Push-Pull	Square	Female Socket	14	Black			1	Surface Mount	All	Tin	Solder	Board Lock Pick and Place	9.35 mm	0.368 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Receptacle Connector 0.156" (3.96mm) Through Hole Tin
