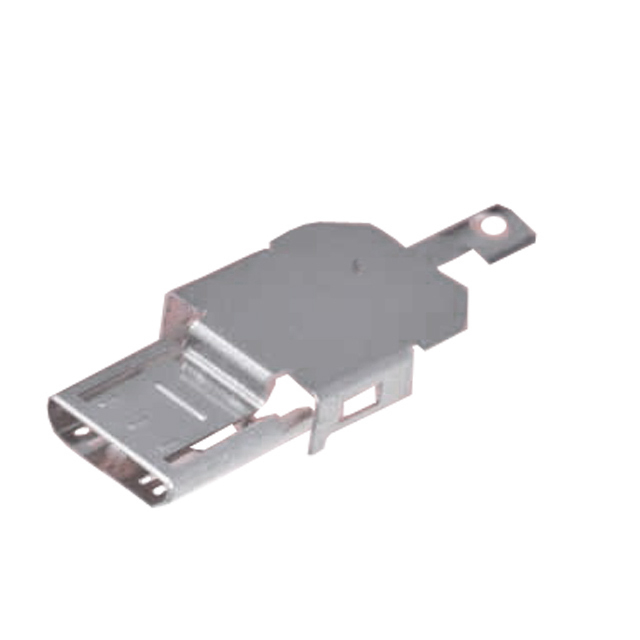

ZX40-B-SLDA

Active

Hirose Electric Co Ltd

CONN SHD PLATE FOR MIC USB B PLG

Search across all available documentation for this part.

Active

Hirose Electric Co Ltd

CONN SHD PLATE FOR MIC USB B PLG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZX40-B-SLDA	ZX40 Series

Accessory Type	Shielding Plate, Top	Shielding Plate, Top
Configuration	-	A Male to Micro B Male
Connector Type	-	USB - micro B
Contact Finish	-	Gold
Current Rating (Amps)	-	1 A
Features	-	Data Transfer, Charge
For Use With/Related Products	USB - microUSB B Plug	USB - microUSB B Plug
Gender	-	Plug
Insulation Color	-	Black
Length	-	1 - 500 m
Length	-	1.64 - 3.28 ft
Material Flammability Rating	-	UL94 V-0
Mating Cycles	-	10000
Mounting Type	-	Free Hanging (In-Line)
Number of Contacts	-	5
Number of Ports	-	1
Operating Temperature	-	-30 ░C
Operating Temperature	-	85 °C
Shell/Shielding Material	-	Stainless, Steel
Shielding	-	Shielded
Specifications	-	USB 2.0
Termination	-	Solder
Transfer Rate	-	480 Mbps
Voltage - Rated	-	30 VAC

ZX40-B-5S-1000-STDA(30) HIROSE ELECTRIC CABLE ASSEMBLY USB 1M USB 2.0 TYPE A TO MICRO USB 2.0 TYPE B 5 POS - ARROW.COM

Part	Shielding	Specifications	Length [x]	Length [x]	Transfer Rate	Configuration	Features	Voltage - Rated	Material Flammability Rating	Current Rating (Amps)	Insulation Color	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shell/Shielding Material	Mounting Type	Contact Finish	Mating Cycles	Number of Contacts	Number of Ports	Gender	For Use With/Related Products	Accessory Type
Hirose Electric Co Ltd ZX40-B-5S-1000-STDA(30)	Shielded	USB 2.0	1 m	3.28 ft	480 Mbps	A Male to Micro B Male	Charge, Data Transfer
Hirose Electric Co Ltd ZX40-B-5S-UNIT(31)		USB 2.0						30 VAC	UL94 V-0	1 A	Black	Solder	-30 ░C	85 °C	USB - micro B	Stainless, Steel	Free Hanging (In-Line)	Gold	10000	5	1	Plug
Hirose Electric Co Ltd ZX40-B-SLDA																							USB - microUSB B Plug	Shielding Plate, Top
Hirose Electric Co Ltd ZX40-B-5S-500-STDA(30)	Shielded	USB 2.0	500 mm	1.64 ft	480 Mbps	A Male to Micro B Male	Charge, Data Transfer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Shielding Plate, Top For USB - microUSB B Plug
