FMW-65-0005

Active

SCHURTER Inc.

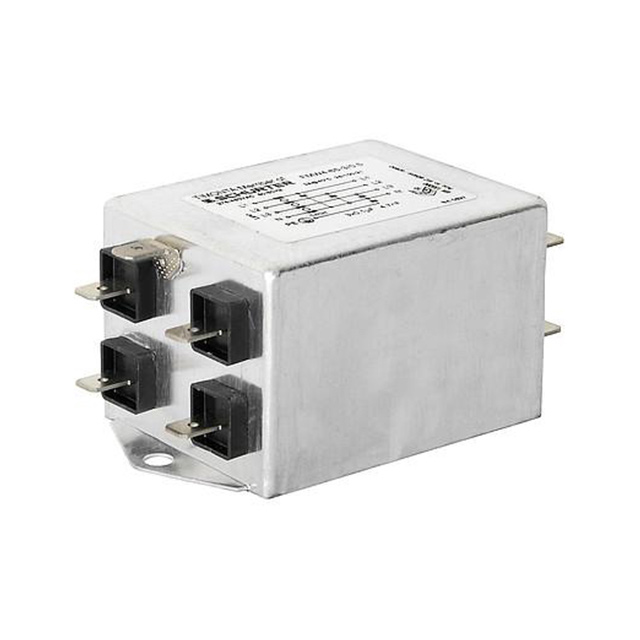

LINE FILTER 250V/440VAC 20A CHAS

Search across all available documentation for this part.

Active

SCHURTER Inc.

LINE FILTER 250V/440VAC 20A CHAS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FMW-65-0005	FMW-65 Series

Applications	General Purpose	General Purpose
Approval Agency	ENEC, VDE	ENEC, VDE
Configuration	Single Stage	Single Stage
Current	20 A	3 - 20 A
Filter Type	Three Phase (Wye)	Three Phase (Wye)
Frequency - Operating [Max]	60 Hz	60 Hz
Frequency - Operating [Min]	50 Hz	50 Hz
Inductance	150 µH	1 - 400 mH
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Termination Style	Quick Connect	Quick Connect
Voltage - Rated AC	440 V, 250 V	250 - 440 V

LINE FILTER 250V/440VAC 3A CHAS

Part	Current	Configuration	Termination Style	Voltage - Rated AC	Operating Temperature [custom]	Frequency - Operating [Max]	Frequency - Operating [Min]	Filter Type	Applications	Inductance	Mounting Type	Approval Agency
SCHURTER Inc. FMW-65-0001	3 A	Single Stage	Quick Connect	250 V, 440 V	-25 °C, 100 °C	60 Hz	50 Hz	Three Phase (Wye)	General Purpose	1 mH	Chassis Mount	ENEC, VDE
SCHURTER Inc. FMW-65-0003	10 A	Single Stage	Quick Connect	250 V, 440 V	-25 °C, 100 °C	60 Hz	50 Hz	Three Phase (Wye)	General Purpose	400 µH	Chassis Mount	ENEC, VDE
SCHURTER Inc. FMW-65-0005	20 A	Single Stage	Quick Connect	250 V, 440 V	-25 °C, 100 °C	60 Hz	50 Hz	Three Phase (Wye)	General Purpose	150 µH	Chassis Mount	ENEC, VDE
SCHURTER Inc. FMW-65-0004	10 A	Single Stage	Quick Connect	250 V, 440 V	-25 °C, 100 °C	60 Hz	50 Hz	Three Phase (Wye)	General Purpose	400 µH	Chassis Mount	ENEC, VDE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Three Phase (Wye) EMC/EMI Line Filter 20 A 250V, 440V 50/60Hz Single Stage Quick Connect
