GLF71308

Active

GLF Integrated Power

NANO-CURRENT CONSUMED POWER SWIT

Search across all available documentation for this part.

Active

GLF Integrated Power

NANO-CURRENT CONSUMED POWER SWIT

Technical Specifications

Parameters and characteristics for this part

Specification	GLF71308

Current - Output (Max) [Max]	2 A
Features	Slew Rate Controlled, Load Discharge
Mounting Type	Surface Mount
Number of Outputs	1
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	34 mOhm
Supplier Device Package	4-WLCSP
Supplier Device Package [x]	0.77
Supplier Device Package [y]	0.77
Switch Type	General Purpose
Voltage - Load [Max]	5.5 V
Voltage - Load [Min]	1.1 V
Voltage - Supply (Vcc/Vdd)	False

NANO-CURRENT CONSUMED POWER SWIT

Part	Current - Output (Max) [Max]	Mounting Type	Voltage - Load [Min]	Voltage - Load [Max]	Switch Type	Number of Outputs	Voltage - Supply (Vcc/Vdd)	Rds On (Typ)	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Features	Ratio - Input:Output [custom]
GLF Integrated Power GLF71308	2 A	Surface Mount	1.1 V	5.5 V	General Purpose	1		34 mOhm	4-WLCSP	0.77	0.77	Load Discharge, Slew Rate Controlled	1:1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

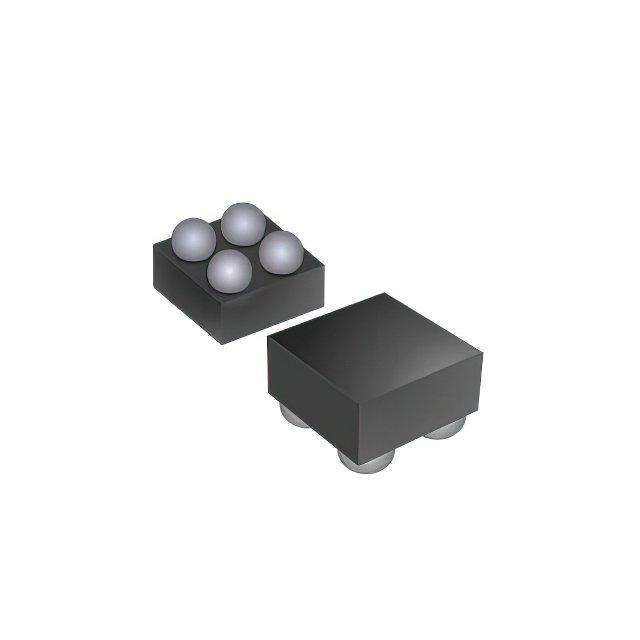

Power Switch/Driver 1:1 2A 4-WLCSP (0.77x0.77)

Technical documentation and resources

No documents available
