A4875

Active

Sensata-Crydom

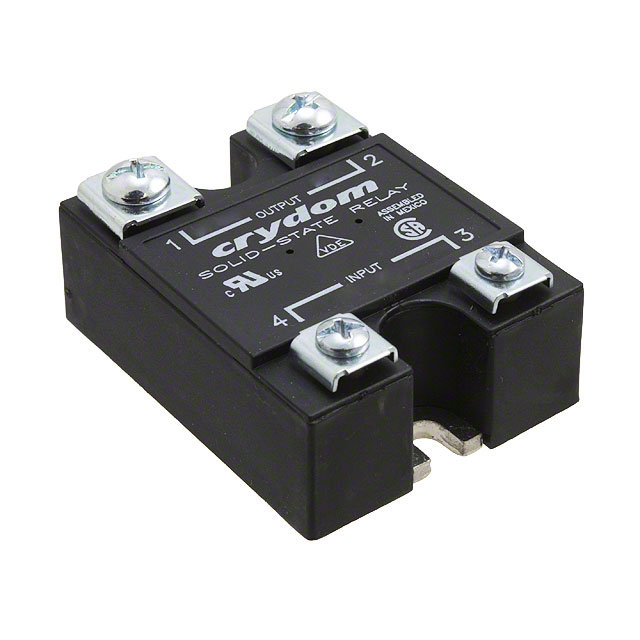

SOLID STATE RELAY, SPST-NO, 75 A, 530 VAC, PANEL MOUNT, SCREW, ZERO CROSSING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet CE Declaration of Conformity +1

A4875

Active

Sensata-Crydom

SOLID STATE RELAY, SPST-NO, 75 A, 530 VAC, PANEL MOUNT, SCREW, ZERO CROSSING

Deep-Dive with AI

DocumentsDatasheet CE Declaration of Conformity +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 123.70
		10	$ 117.81
		50	$ 112.45
Newark	Each	1	$ 135.90

Description

General part information

- Series

The A48 series panel-mount Solid State Relay for heavy industrial loads. It has Zero turn-on or instantaneous turn-on outputs and is redesigned housing with anti-rotation barriers.

Specification	A4875	- Series

Approval Agency	-	CSA, TUV, cURus, CE, CE, cURus, cULus, IEC, UL, VDE
Load Current	75 A	1.5 - 125 A
Mounting Type	Chassis Mount	Chassis Mount, DIN Rail, Socketable, Through Hole
On-State Resistance (Max)	-	8 - 550 mOhms
Operating Temperature	-	40 - 100 °C
Operating Temperature	-	-40 - -20 °C
Output Type	AC, Zero Cross	AC, Zero Cross, DC
Package / Case	Hockey Puck	Hockey Puck, Module, 6-SIP, 4-SIP
Supplier Device Package	-	6-SIP, 4-SIP, 4-Mini SIP
Termination Style	Screw Terminal	Screw Terminal, Plug In, Quick Connect - 0.187" (4.7mm), Quick Connect - 0.187" (4.7mm), PC Pin
Voltage - Input [Max]	280 VAC/DC	8 - 280 V
Voltage - Input [Min]	90 VAC	3 - 90 V
Voltage - Load [Max]	530 V	60 - 660 V
Voltage - Load [Min]	80 V	0 - 80 V

Part	Approval Agency	Voltage - Load [Min]	Voltage - Load [Max]	Termination Style	Output Type	Mounting Type	Load Current	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Package / Case	On-State Resistance (Max) [Max]
Sensata-Crydom D4840	CE, CSA, cURus, TUV	80 V	530 V	Screw Terminal	AC, Zero Cross	Chassis Mount	40 A	100 °C	-40 °C	32 V	3 V	Hockey Puck
Sensata-Crydom HD6090	CE, CSA, cURus, TUV	48 V	660 V	Screw Terminal	AC, Zero Cross	Chassis Mount	90 A	80 C	-40 °C	32 V	3 V	Hockey Puck
Sensata-Crydom D2D40	CE, cURus	1 V	200 V	Screw Terminal	DC	Chassis Mount	40 A	100 °C	-40 °C	32 V	3.5 V	Hockey Puck	50 mOhms
Sensata-Crydom CWU2450	CE, CSA, cURus, TUV	24 V	280 V	Screw Terminal	AC, Zero Cross	Chassis Mount	50 A	80 C	-40 °C	48 V, 280 VAC/DC	20 VAC/DC, 20 VDC	Hockey Puck
Sensata-Crydom DR10D24	CE, cULus	1 V	100 V	Screw Terminal	DC	DIN Rail	24 A	40 °C	-20 C	32 V	4 V	Module	26 mOhms
Sensata-Crydom HD4875	CE, CSA, cURus, TUV			Screw Terminal	AC, Zero Cross	Chassis Mount	75 A	80 C	-40 °C	32 V	3 V	Hockey Puck
Sensata-Crydom ED24B5	CE, cURus, IEC	24 V	280 V	Plug In, Quick Connect - 0.187" (4.7mm)	AC, Zero Cross	Socketable	5 A	80 C	-30 ░C	140 VAC	90 VAC	Module
Sensata-Crydom S218	CE, CSA, UL	20 V	140 V	Quick Connect - 0.187" (4.7mm)	AC, Zero Cross	Chassis Mount	8 A	80 C	-30 ░C	8 VDC	3.5 V	Module
Sensata-Crydom CWA4890	CE, CSA, cURus, TUV	48 V	660 V	Screw Terminal	AC, Zero Cross	Chassis Mount	90 A	80 C	-40 °C	280 VAC/DC	90 VAC	Hockey Puck
Sensata-Crydom S228C	CE, CSA, UL	40 V	280 V	Quick Connect - 0.187" (4.7mm)	AC, Zero Cross	Chassis Mount	8 A	80 C	-30 ░C	8 VDC	3.5 V	Module
