PHJ.1B.306.CLAD35

Active

LEMO

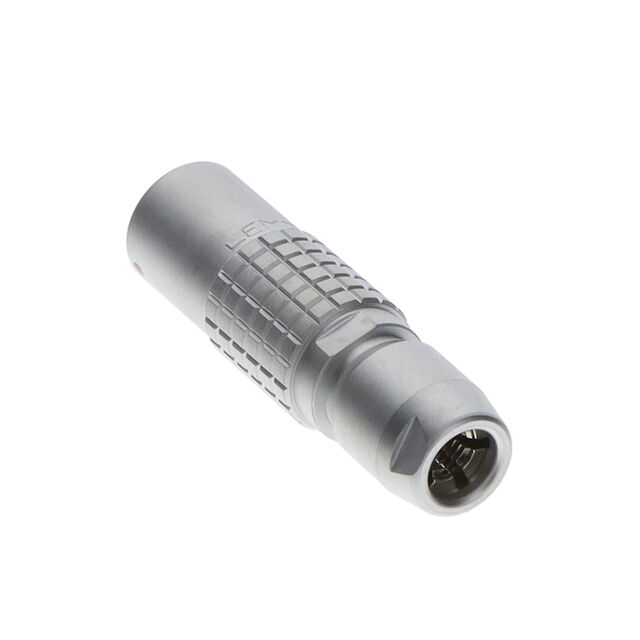

CONN RCPT MALE 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PHJ.1B.306.CLAD35

Active

LEMO

CONN RCPT MALE 6P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PHJ.1B.306.CLAD35	PHJ.1B Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening	-	0.244 - 0.283 in
Cable Opening	-	6.2 - 7.2 mm
Cable Opening	-	6.2 mm
Cable Opening	-	5.2 - 7.2 mm
Cable Opening	-	0.205 - 0.283 in
Cable Opening	-	0.244 - 0.299 in
Cable Opening	-	7.6 mm
Cable Opening [diameter]	3.1 mm, 4.2 mm	3.1 - 4.2 mm
Cable Opening [diameter]	0.165 in, 0.122 in	0.122 - 0.165 in
Color	Silver	Silver
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	7 A	5 - 10 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	6	4 - 8
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	J	J
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	306	304 - 308
Shielding	Shielded	Shielded
Termination	-	Crimp

PHJ.1B Series

CONN RCPT MALE 4P GOLD SLDR CUP

Part	Ingress Protection	Mounting Type	Shell Finish	Features	Contact Material	Insert Material	Color	Cable Opening [custom]	Cable Opening [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Primary Material	Shielding	Orientation	Connector Type	Fastening Type	Current Rating (Amps)	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Shell Material	Contact Finish - Mating	Material Flammability Rating	Cable Opening [diameter]	Cable Opening [diameter]	Termination	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]
LEMO PHJ.1B.304.CLAD72Z	IP50	Free Hanging (In-Line)	Chrome	Backshell	Brass	Polyetheretherketone (PEEK)	Silver	0.244 in, 0.283 in	6.2 mm, 7.2 mm	-55 °C	250 °C	Brass, Chrome	Metal	Shielded	J	Male Pins, Receptacle	Push-Pull	10 A	4	1 µm	39.4 µin	304	Brass	Gold	UL94 V-0
LEMO PHJ.1B.308.CYCD42Z	IP50	Free Hanging (In-Line)	Chrome	Backshell	Brass	Polyetheretherketone (PEEK)	Silver			-55 °C	250 °C	Brass, Chrome	Metal	Shielded	J	Male Pins, Receptacle	Push-Pull	5 A	8	1 µm	39.4 µin	308	Brass	Gold	UL94 V-0	3.1 mm, 4.2 mm	0.122 in, 0.165 in	Crimp
LEMO PHJ.1B.304.CYCD72	IP50	Free Hanging (In-Line)	Chrome	Backshell	Brass	Polyetheretherketone (PEEK)	Silver	0.244 in, 0.283 in	6.2 mm, 7.2 mm	-55 °C	250 °C	Brass, Chrome	Metal	Shielded	J	Male Pins, Receptacle	Push-Pull	10 A	4	1 µm	39.4 µin	304	Brass	Gold	UL94 V-0			Crimp
LEMO PHJ.1B.306.CYCD72	IP50	Free Hanging (In-Line)	Chrome	Backshell	Brass	Polyetheretherketone (PEEK)	Silver	0.244 in, 0.283 in	6.2 mm, 7.2 mm	-55 °C	250 °C	Brass, Chrome	Metal	Shielded	J	Male Pins, Receptacle	Push-Pull	7 A	6	1 µm	39.4 µin	306	Brass	Gold	UL94 V-0			Crimp
LEMO PHJ.1B.306.CLAD35	IP50	Free Hanging (In-Line)	Chrome	Backshell	Brass	Polyetheretherketone (PEEK)	Silver			-55 °C	250 °C	Brass, Chrome	Metal	Shielded	J	Male Pins, Receptacle	Push-Pull	7 A	6	1 µm	39.4 µin	306	Brass	Gold	UL94 V-0	3.1 mm, 4.2 mm	0.122 in, 0.165 in
LEMO PHJ.1B.305.CYCD72Z	IP50	Free Hanging (In-Line)	Chrome	Backshell	Brass	Polyetheretherketone (PEEK)	Silver	0.244 in, 0.283 in	6.2 mm, 7.2 mm	-55 °C	250 °C	Brass, Chrome	Metal	Shielded	J	Male Pins, Receptacle	Push-Pull	9 A		1 µm	39.4 µin	305	Brass	Gold	UL94 V-0			Crimp
LEMO PHJ.1B.304.CYCD62	IP50	Free Hanging (In-Line)	Chrome	Backshell	Brass	Polyetheretherketone (PEEK)	Silver			-55 °C	250 °C	Brass, Chrome	Metal	Shielded	J	Male Pins, Receptacle	Push-Pull	10 A	4	1 µm	39.4 µin	304	Brass	Gold	UL94 V-0			Crimp	6.2 mm	5.2 mm	0.205 in	0.244 in
LEMO PHJ.1B.306.CLAD76Z	IP50	Free Hanging (In-Line)	Chrome	Backshell	Brass	Polyetheretherketone (PEEK)	Silver			-55 °C	250 °C	Brass, Chrome	Metal	Shielded	J	Male Pins, Receptacle	Push-Pull	7 A	6	1 µm	39.4 µin	306	Brass	Gold	UL94 V-0					7.2 mm	0.283 in	0.299 in	7.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 45.91
		10	$ 40.20
		25	$ 38.46
		50	$ 37.22
		100	$ 35.98
		250	$ 34.00

Description

General part information

PHJ.1B Series

6 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources
