MSMLJ90CA/TR

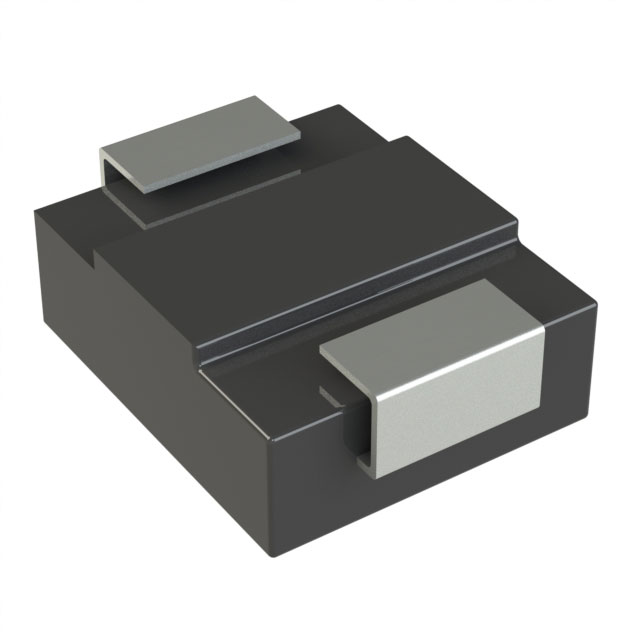

ActiveTVS 90V 5% 3000W BI SMLJ (DO-214AB) ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
MSMLJ90CA/TR
ActiveTVS 90V 5% 3000W BI SMLJ (DO-214AB) ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MSMLJ90CA/TR | MSMLJ90 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Bidirectional Channels [custom] | 1 | 1 |
| Current - Peak Pulse (10/1000µs) | 20.6 A | 20.6 A |
| Grade | Military | Military |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -65 °C | -65 °C |
| Package / Case | SMC, DO-214AB | SMC, DO-214AB |
| Power - Peak Pulse | 3000 W | 3000 W |
| Power - Peak Pulse | 3 kW | 3 kW |
| Power Line Protection | False | False |
| Qualification | MIL-PRF-19500 | MIL-PRF-19500 |
| Supplier Device Package | DO-214AB (SMLJ) | DO-214AB (SMLJ), DO-214AB |
| Type | Zener | Zener |
| Unidirectional Channels | - | 1 |
| Voltage - Breakdown (Min) [Min] | 100 V | 100 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 146 V | 146 V |
| Voltage - Reverse Standoff (Typ) | 90 V | 90 V |
MSMLJ90 Series
Surface Mount 3000 Watt Transient Voltage Suppressor
| Part | Voltage - Reverse Standoff (Typ) | Power - Peak Pulse | Power - Peak Pulse | Voltage - Breakdown (Min) [Min] | Power Line Protection | Supplier Device Package | Applications | Grade | Package / Case | Voltage - Clamping (Max) @ Ipp [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Current - Peak Pulse (10/1000µs) | Qualification | Bidirectional Channels [custom] | Type | Unidirectional Channels [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology MSMLJ90CA/TR | 90 V | 3000 W | 3 kW | 100 V | DO-214AB (SMLJ) | General Purpose | Military | DO-214AB, SMC | 146 V | 150 °C | -65 °C | Surface Mount | 20.6 A | MIL-PRF-19500 | 1 | Zener | ||
Microchip Technology MSMLJ90CA | 90 V | 3000 W | 3 kW | 100 V | DO-214AB | General Purpose | Military | DO-214AB, SMC | 146 V | 150 °C | -65 °C | Surface Mount | 20.6 A | MIL-PRF-19500 | 1 | Zener | ||
Microchip Technology MSMLJ90A/TR | 90 V | 3000 W | 3 kW | 100 V | DO-214AB (SMLJ) | General Purpose | Military | DO-214AB, SMC | 146 V | 150 °C | -65 °C | Surface Mount | 20.6 A | MIL-PRF-19500 | Zener | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 400 | $ 2.39 | |
| Microchip Direct | N/A | 1 | $ 2.56 | |
| 100 | $ 2.39 | |||
| 500 | $ 2.30 | |||
| 1000 | $ 2.16 | |||
| Newark | Each | 100 | $ 2.39 | |
| 500 | $ 2.30 | |||
Description
General part information
MSMLJ90 Series
The MSMLG(J)5.0A through MXLSMLG(J)170A series of high-reliability Transient Voltage Suppressors (TVSs) protect circuits from voltage spikes containing up to 3000 W (10/1000 µs model pulse. The SMLG gull-wing design in the DO-215AB package allows for visible solder connections. The SMLJ J-bend design in the DO-214AB package allows for greater PC board mounting density. Selections include unidirectional and bidirectional as well as RoHS compliant versions. These are available with a variety of upscreening options for enhanced reliability. They protect against the secondary effects of lightning per IEC61000-4-5 and against voltage pulses from inductive switching environments and induced by RF radiation. Since their response time is virtually instantaneous, they can also be used in protection from ESD and EFT per IEC61000-4-2 and IEC61000-4-4.
