1218-0.75-5

Active

3M (TC)

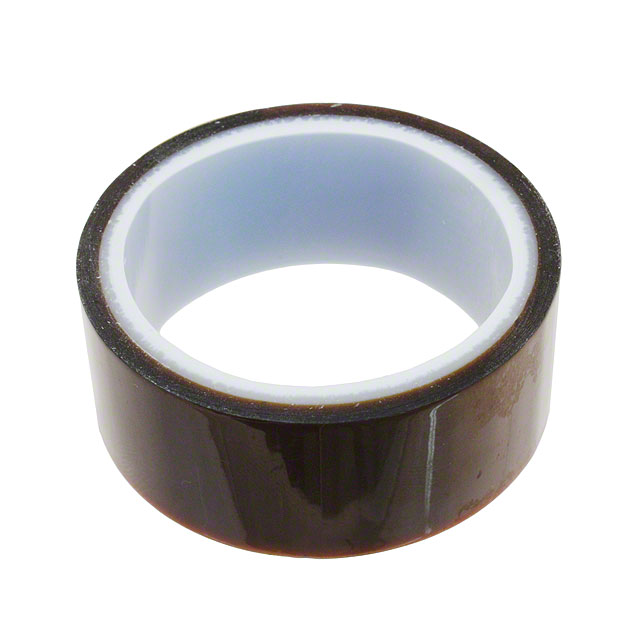

TAPE INSULATING AMBER 3/4"X5YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1218-0.75-5

Active

3M (TC)

TAPE INSULATING AMBER 3/4"X5YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.45
		10	$ 24.18
		25	$ 22.91
		50	$ 21.63
		100	$ 20.36
		250	$ 19.09
		500	$ 17.82

Description

General part information

1218 Series

Insulating, High Temperature Tape Acrylic Adhesive Amber 0.75" (19.05mm) 3/4" X 15' (4.6m) 5 yds

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1218-0.75-5	1218 Series

Adhesive	Acrylic	Acrylic
Backing, Carrier	Polyimide	Polyimide
Color	Amber	Amber
Length	4.6 m	4.6 - 304.8 mm
Length	15 ft	0.5 - 108 in
Length	5 yd	0.5 - 36 "
Length	-	1 - 5 in
Length	-	25.4 - 127 mm
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Tape Type	Insulating, High Temperature	Insulating, High Temperature, Electrical
Temperature Range	180 °C	180 °C
Temperature Range	356 °F	356 °F
Thickness	3 mils	3 mils
Thickness	0.003 in	0.003 in
Thickness	0.076 mm	0.076 mm
Thickness - Adhesive	2 mils	2 mils
Thickness - Adhesive	0.051 mm	0.051 mm
Thickness - Adhesive [x]	0.002 "	0.002 "
Thickness - Backing, Carrier	1 mils	1 mils
Thickness - Backing, Carrier	0.025 mm	0.025 mm
Thickness - Backing, Carrier	0.001 "	0.001 "
Usage	High Temperature, Insulating	High Temperature, Insulating
Width	0.75 in	0.13 - 41.28 "
Width	19.05 mm	0.125 - 88.9 "
Width	0.75 in	0.13 - 254 mm
Width	-	1 1/2, 1 3/4, 1 7/8"
Width	-	0.88 - 12 in
Width	-	11.94 - 279.4 mm
Width	-	0.47 - 11 in
Width	-	1 5/8
Width	-	22.35 - 304.8 mm
Width	-	0.125 - 6 in
Width	-	25.4 - 152.4 mm
Width	-	0.1875 in

1218 Series

TAPE INSULATING AMB 1 1/2" DIA

...

Part	Temperature Range	Temperature Range	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive [x]	Adhesive	Shelf Life	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Width	Width	Width	Backing, Carrier	Thickness	Thickness	Thickness	Tape Type	Color	Shelf Life Start	Width	Length	Length	Length	Width [x]	Width [y]	Width [y]	Width	Width [x]
3M (TC) 3M 1218 CIRCLE-1.500"-500	356 °F	180 °C	2 mils	0.051 mm	0.002 "	Acrylic	60 Months	1 mils	0.025 mm	0.001 "	38.1 mm	1.5 "		Polyimide	3 mils	0.003 in	0.076 mm	Insulating, High Temperature	Amber	Date of Manufacture
3M (TC) 3M 1218 1.5" X 7.25"-100	356 °F	180 °C	2 mils	0.051 mm	0.002 "	Acrylic	60 Months	1 mils	0.025 mm	0.001 "	38.1 mm	1.5 "		Polyimide	3 mils	0.003 in	0.076 mm	Insulating, High Temperature	Amber	Date of Manufacture	1 1/2	7.25 in	184.15 mm
3M (TC) 1218-1.5-36	356 °F	180 °C	2 mils	0.051 mm	0.002 "	Acrylic	60 Months	1 mils	0.025 mm	0.001 "	38.1 mm	1.5 "		Polyimide	3 mils	0.003 in	0.076 mm	Insulating, High Temperature	Amber	Date of Manufacture	1 1/2	108 ft	32.9 m	36 yd
3M (TC) 3M 1218 10" X 36YD	356 °F	180 °C	2 mils	0.051 mm	0.002 "	Acrylic	60 Months	1 mils	0.025 mm	0.001 "	254 mm			Polyimide	3 mils	0.003 in	0.076 mm	Insulating, High Temperature	Amber	Date of Manufacture		108 ft	32.9 m	36 yd	10 in
3M (TC) 3M 1218 5" X 1.25"-25	356 °F	180 °C	2 mils	0.051 mm	0.002 "	Acrylic	60 Months	1 mils	0.025 mm	0.001 "				Polyimide	3 mils	0.003 in	0.076 mm	Insulating, High Temperature	Amber	Date of Manufacture		1.25 in	31.75 mm			127 mm	5 in
3M (TC) 3M 1218 1.625" X 36YD	356 °F	180 °C	2 mils	0.051 mm	0.002 "	Acrylic	60 Months	1 mils	0.025 mm	0.001 "		1.63 in, 41.28 mm		Polyimide	3 mils	0.003 in	0.076 mm	Insulating, High Temperature	Amber	Date of Manufacture		108 ft	32.9 m	36 yd				1 5/8
3M (TC) 3M 1218 7" X 7.25"-25	356 °F	180 °C	2 mils	0.051 mm	0.002 "	Acrylic	60 Months	1 mils	0.025 mm	0.001 "				Polyimide	3 mils	0.003 in	0.076 mm	Insulating, High Temperature	Amber	Date of Manufacture		7.25 in	184.15 mm		7 in				177.8 mm
3M (TC) 3M 1218 5" X 6"-25	356 °F	180 °C	2 mils	0.051 mm	0.002 "	Acrylic	60 Months	1 mils	0.025 mm	0.001 "				Polyimide	3 mils	0.003 in	0.076 mm	Insulating, High Temperature	Amber	Date of Manufacture		6 in	152.4 mm			127 mm	5 in
3M (TC) 3M 1218 10" X 10.5"-25	356 °F	180 °C	2 mils	0.051 mm	0.002 "	Acrylic	60 Months	1 mils	0.025 mm	0.001 "	254 mm			Polyimide	3 mils	0.003 in	0.076 mm	Insulating, High Temperature	Amber	Date of Manufacture		10.5 in	266.7 mm		10 in
3M (TC) 3M 1218 0.5" X 0.75"-250	356 °F	180 °C	2 mils	0.051 mm	0.002 "	Acrylic	60 Months	1 mils	0.025 mm	0.001 "	12.7 mm	0.5 in	0.5 in	Polyimide	3 mils	0.003 in	0.076 mm	Insulating, High Temperature	Amber	Date of Manufacture		0.75 in	19.05 mm	0.75 "
