1218-0.75-5
Active3M (TC)

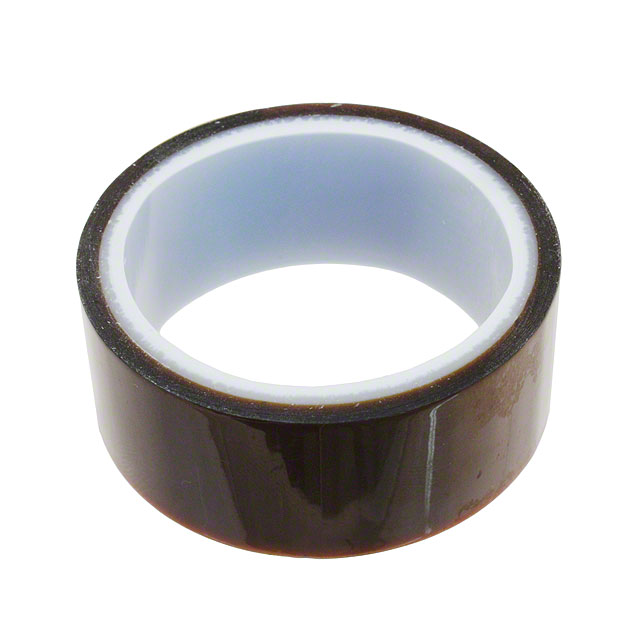

TAPE INSULATING AMBER 3/4"X5YDS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1218-0.75-5
Active3M (TC)
TAPE INSULATING AMBER 3/4"X5YDS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1218-0.75-5 |
|---|---|
| Adhesive | Acrylic |
| Backing, Carrier | Polyimide |
| Color | Amber |
| Length | 4.6 m |
| Length | 15 ft |
| Length | 5 yd |
| Shelf Life | 60 Months |
| Shelf Life Start | Date of Manufacture |
| Tape Type | Insulating, High Temperature |
| Temperature Range | 180 °C |
| Temperature Range | 356 °F |
| Thickness | 3 mils |
| Thickness | 0.003 in |
| Thickness | 0.076 mm |
| Thickness - Adhesive | 2 mils |
| Thickness - Adhesive | 0.051 mm |
| Thickness - Adhesive [x] | 0.002 " |
| Thickness - Backing, Carrier | 1 mils |
| Thickness - Backing, Carrier | 0.025 mm |
| Thickness - Backing, Carrier | 0.001 " |
| Usage | High Temperature, Insulating |
| Width | 0.75 in |
| Width | 19.05 mm |
| Width | 0.75 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.45 | |
| 10 | $ 24.18 | |||
| 25 | $ 22.91 | |||
| 50 | $ 21.63 | |||
| 100 | $ 20.36 | |||
| 250 | $ 19.09 | |||
| 500 | $ 17.82 | |||
Description
General part information
1218-0.75-5
Insulating, High Temperature Tape Acrylic Adhesive Amber 0.75" (19.05mm) 3/4" X 15' (4.6m) 5 yds
