629-015-340-042

Active

EDAC Inc.

629 SERIES RIGHT ANGLE D-SUB PLU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

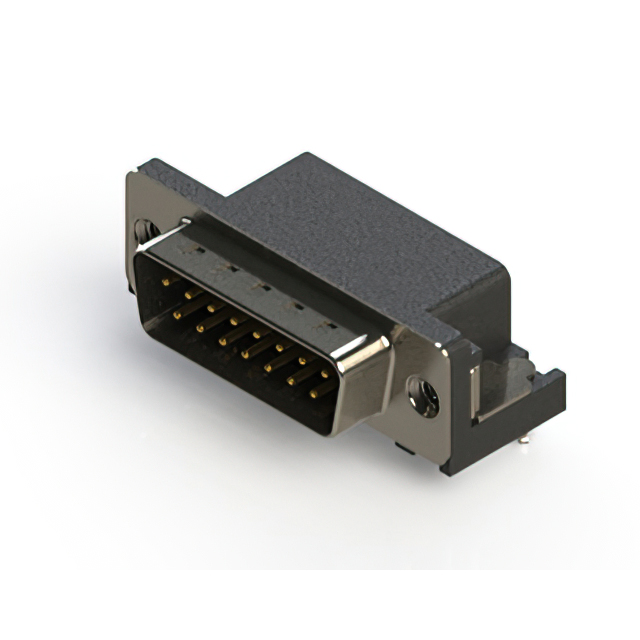

629-015-340-042

Active

EDAC Inc.

629 SERIES RIGHT ANGLE D-SUB PLU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-015-340-042

Backset Spacing	0.409 in
Backset Spacing	10.4 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets, Grounding Indents, Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder

629-015 Series

Part	Shell Size, Connector Layout	Contact Finish	Connector Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Color	Connector Style	Mounting Type	Backset Spacing	Backset Spacing	Current Rating (Amps)	Material Flammability Rating	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Features	Flange Feature	Number of Positions	Dielectric Material	Number of Rows	Shell Material, Finish	Contact Finish Thickness
EDAC Inc. 629-015-640-041	2	Gold	Male Pins Plug	Solder	0.76 Ám	30 Áin	Black	D-Sub	Panel Mount Right Angle Through Hole	0.409 in	10.4 mm	3 A	UL94 V-0	Copper Alloy	85 °C	-55 °C	Signal	Board Lock Grounding Indents Mounting Brackets Shielded	Housing/Shell (Unthreaded)	15	Polyester Thermoplastic	2	Nickel Plated Steel
EDAC Inc. 629-015-340-043	2	Gold	Male Pins Plug	Solder	0.38 µm	15 µin	Black	D-Sub	Panel Mount Right Angle Through Hole	0.409 in	10.4 mm	3 A	UL94 V-0	Copper Alloy	85 °C	-55 °C	Signal	Board Lock Grounding Indents Mounting Brackets Shielded	Female Screwlock (4-40) Mating Side	15	Polyester Thermoplastic	2	Nickel Plated Steel
EDAC Inc. 629-015-240-541	2	Gold	Male Pins Plug	Solder			Black	D-Sub	Panel Mount Right Angle Through Hole	0.409 in	10.4 mm	3 A	UL94 V-0	Copper Alloy	125 °C	-55 °C	Signal	Board Lock Grounding Indents Mounting Brackets Shielded	Housing/Shell (Unthreaded)	15	Polyester Thermoplastic	2	Nickel Plated Steel	Flash
EDAC Inc. 629-015-340-515	2	Gold	Male Pins Plug	Solder	0.38 µm	15 µin	Black	D-Sub	Panel Mount Right Angle Through Hole	0.409 in	10.4 mm	3 A	UL94 V-0	Copper Alloy	125 °C	-55 °C	Signal	Grounding Indents Mounting Brackets Shielded	Housing/Shell (M3)	15	Polyester Thermoplastic	2	Nickel Plated Steel
EDAC Inc. 629-015-340-042	2	Gold	Male Pins Plug	Solder	0.38 µm	15 µin	Black	D-Sub	Panel Mount Right Angle Through Hole	0.409 in	10.4 mm	3 A	UL94 V-0	Copper Alloy	85 °C	-55 °C	Signal	Board Lock Grounding Indents Mounting Brackets Shielded	Housing/Shell (4-40)	15	Polyester Thermoplastic	2	Nickel Plated Steel
EDAC Inc. 629-015-340-541	2	Gold	Male Pins Plug	Solder	0.38 µm	15 µin	Black	D-Sub	Panel Mount Right Angle Through Hole	0.409 in	10.4 mm	3 A	UL94 V-0	Copper Alloy	125 °C	-55 °C	Signal	Board Lock Grounding Indents Mounting Brackets Shielded	Housing/Shell (Unthreaded)	15	Polyester Thermoplastic	2	Nickel Plated Steel
EDAC Inc. 629-015-640-543	2	Gold	Male Pins Plug	Solder	0.76 Ám	30 Áin	Black	D-Sub	Panel Mount Right Angle Through Hole	0.409 in	10.4 mm	3 A	UL94 V-0	Copper Alloy	125 °C	-55 °C	Signal	Board Lock Grounding Indents Mounting Brackets Shielded	Female Screwlock (4-40) Mating Side	15	Polyester Thermoplastic	2	Nickel Plated Steel
EDAC Inc. 629-015-240-513	2	Gold	Male Pins Plug	Solder			Black	D-Sub	Panel Mount Right Angle Through Hole	0.409 in	10.4 mm	3 A	UL94 V-0	Copper Alloy	125 °C	-55 °C	Signal	Grounding Indents Mounting Brackets Shielded	Female Screwlock (4-40) Mating Side	15	Polyester Thermoplastic	2	Nickel Plated Steel	Flash
EDAC Inc. 629-015-640-011	2	Gold	Male Pins Plug	Solder	0.76 Ám	30 Áin	Black	D-Sub	Panel Mount Right Angle Through Hole	0.409 in	10.4 mm	3 A	UL94 V-0	Copper Alloy	85 °C	-55 °C	Signal	Grounding Indents Mounting Brackets Shielded	Housing/Shell (Unthreaded)	15	Polyester Thermoplastic	2	Nickel Plated Steel
EDAC Inc. 629-015-640-013	2	Gold	Male Pins Plug	Solder	0.76 Ám	30 Áin	Black	D-Sub	Panel Mount Right Angle Through Hole	0.409 in	10.4 mm	3 A	UL94 V-0	Copper Alloy	85 °C	-55 °C	Signal	Grounding Indents Mounting Brackets Shielded	Female Screwlock (4-40) Mating Side	15	Polyester Thermoplastic	2	Nickel Plated Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 1.89

Description

General part information

629-015 Series

15 Position D-Sub Plug, Male Pins Connector
