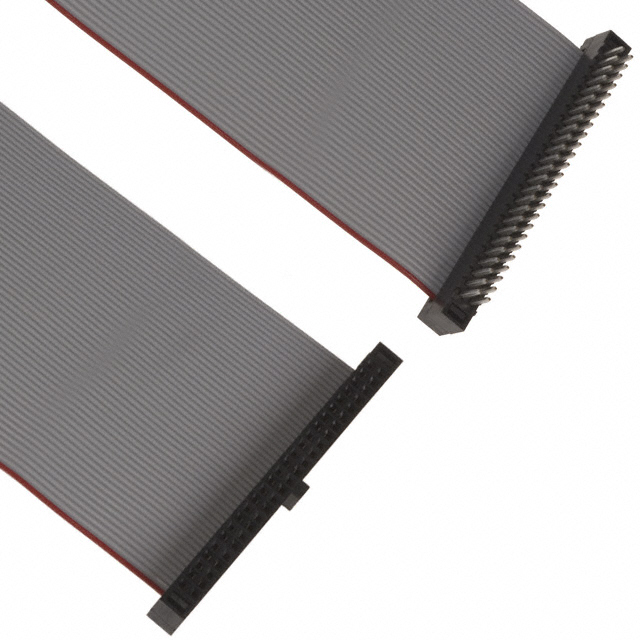

FFMD-25-T-12.00-01-N

Active

Samtec Inc.

CABLE ASSEM .05" 50POS M-F 12"

Search across all available documentation for this part.

Active

Samtec Inc.

CABLE ASSEM .05" 50POS M-F 12"

Technical Specifications

Parameters and characteristics for this part

...

Part	Shielding	Pitch - Cable [x]	Pitch - Cable	Contact Finish	Features	Connector Type	Number of Positions	Cable Termination	Pitch - Connector	Pitch - Connector	Length	Length	Number of Rows	Length	Length	Length [x]	Length [x]	Length [x]
Samtec Inc. FFMD-25-T-13.78-01-N	Unshielded	0.025 in	0.64 mm	Tin	Polarizing Key	Socket to Plug	50	IDC	0.05 in	1.27 mm	1.15 ft	350.01 mm	2
Samtec Inc. FFMD-25-T-06.00-01-N-RW-R	Unshielded	0.025 in	0.64 mm	Tin	Polarizing Key Reverse Wiring	Socket to Plug Reversed	50	IDC	0.05 in	1.27 mm		152.4 mm	2	6 "	0.5 '
Samtec Inc. FFMD-25-D-04.00-01	Unshielded	0.025 in	0.64 mm	Tin		Plug to Plug	50	IDC	0.05 in	1.27 mm			2			4 "	0.333 ft	101.6 mm
Samtec Inc. FFMD-25-T-05.00-01-N-RW	Unshielded	0.025 in	0.64 mm	Tin	Polarizing Key Reverse Wiring	Socket to Plug	50	IDC	0.05 in	1.27 mm			2			5 "	0.417 '	127 mm
Samtec Inc. FFMD-25-S-08.25-01-SR	Unshielded	0.025 in	0.64 mm	Tin	Strain Relief	Plug to Cable	50	IDC	0.05 in	1.27 mm			2			8.25 in	0.687 ft	209.55 mm
Samtec Inc. FFMD-25-D-40.00-01	Unshielded	0.025 in	0.64 mm	Tin		Plug to Plug	50	IDC	0.05 in	1.27 mm			2				3.33 '	1.01 m
Samtec Inc. FFMD-25-D-06.50-01	Unshielded	0.025 in	0.64 mm	Tin		Plug to Plug	50	IDC	0.05 in	1.27 mm	0.542 ft	165.1 mm	2	6.5 "
Samtec Inc. FFMD-25-T-03.00-01-N	Unshielded	0.025 in	0.64 mm	Tin	Polarizing Key	Socket to Plug	50	IDC	0.05 in	1.27 mm	0.25 ft	76.2 mm	2	3 "
Samtec Inc. FFMD-25-D-02.50-01	Unshielded	0.025 in	0.64 mm	Tin		Plug to Plug	50	IDC	0.05 in	1.27 mm			2			2.5 in	2.496 in	63.5 mm
Samtec Inc. FFMD-25-T-12.00-01-N	Unshielded	0.025 in	0.64 mm	Tin	Polarizing Key	Socket to Plug	50	IDC	0.05 in	1.27 mm	1 ft	304.8 mm	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.90

General part information

50 Position Cable Assembly Rectangular Socket to Plug 1.00' (304.80mm)
