MS3126E16-23S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB PLUG
Deep-Dive with AI
Search across all available documentation for this part.
MS3126E16-23S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3126E16-23S | MS3126E16 Series |
|---|---|---|
| - | - | |
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial |
| Backshell Material, Plating | Aluminum, Olive Drab Chromate over Cadmium | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Female Sockets, Plug | Plug, Male Pins, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 13 A, 7.5 A | 7.5 - 13 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Coupling Nut, Backshell | Coupling Nut, Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 23 | 8 - 23 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert [Max] | 23 | 23 |
| Shell Size - Insert [Min] | 16 | 16 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 VAC | 600 - 1000 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 201.15 | |
| 10 | $ 186.40 | |||
| 25 | $ 179.69 | |||
| 50 | $ 178.35 | |||
MS3126E16 Series
PLUG
| Part | Connector Type | Voltage Rating | Color | Number of Positions | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Grade | Orientation | Fastening Type | Ingress Protection | Shell Finish | Applications | Backshell Material, Plating | Qualification | Contact Finish - Mating | Contact Material | Shell Material | Mounting Type | Features | Current Rating (Amps) | Shielding | Insert Material | Termination | Shell Size - Insert [Min] | Shell Size - Insert [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3126E16-23S(LC) | ||||||||||||||||||||||||||
Amphenol Industrial Operations MS3126E16-8P | Male Pins, Plug | 1000 VAC | Olive Drab | 8 | Metal | -55 °C | 125 °C | Military | N | Bayonet Lock | Environment Resistant | Olive Drab Chromate over Cadmium | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Aluminum, Olive Drab Chromate over Cadmium | MIL-DTL-26482 Series I | Gold | Copper Alloy | Aluminum | Free Hanging (In-Line) | Backshell, Coupling Nut | 13 A | Unshielded | Neoprene | Crimp | ||
Amphenol Industrial Operations MS3126E16-23S | Female Sockets, Plug | 600 VAC | Olive Drab | 23 | Metal | -55 °C | 125 °C | Military | N | Bayonet Lock | Environment Resistant | Olive Drab Chromate over Cadmium | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Aluminum, Olive Drab Chromate over Cadmium | MIL-DTL-26482 Series I | Gold | Copper Alloy | Aluminum | Free Hanging (In-Line) | Backshell, Coupling Nut | 7.5 A, 13 A | Unshielded | Neoprene | Crimp | 16 | 23 |
Amphenol Industrial Operations MS3126E16-26P(LC) | ||||||||||||||||||||||||||
Amphenol Industrial Operations MS3126E16-99P(LC) |
Description
General part information
MS3126E16 Series

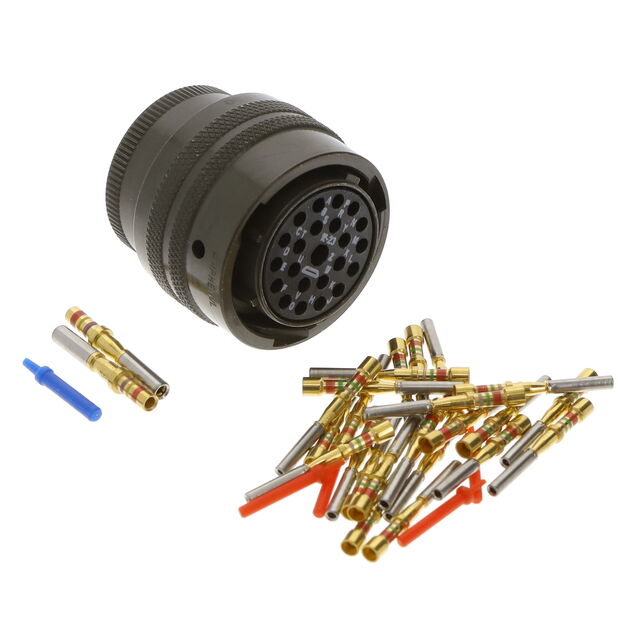

23 Position Circular Connector Plug, Female Sockets Crimp
