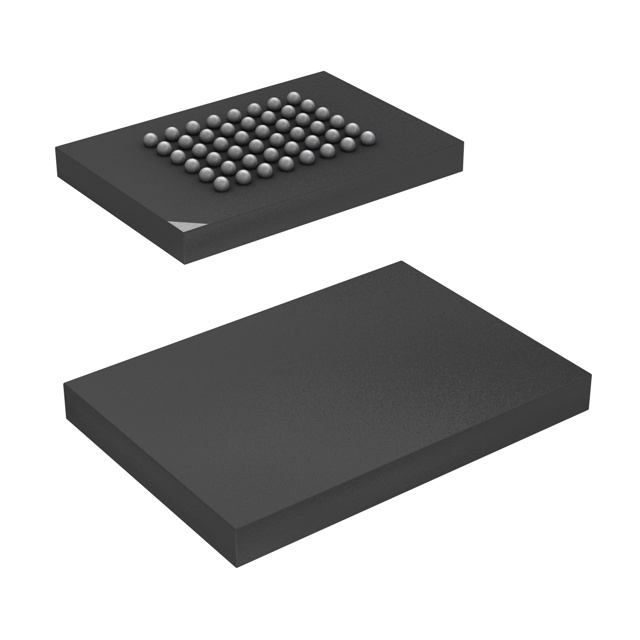

CY14B108N-BA45XI

Active

Infineon Technologies

IC NVSRAM 8MBIT PARALLEL 48FBGA

Deep-Dive with AI

Search across all available documentation for this part.

CY14B108N-BA45XI

Active

Infineon Technologies

IC NVSRAM 8MBIT PARALLEL 48FBGA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CY14B108N-BA45XI

Access Time	45 ns
Memory Format	NVSRAM
Memory Interface	Parallel
Memory Organization	512 K
Memory Size	1024 KB
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	48-TFBGA
Supplier Device Package	48-FBGA (6x10)
Technology	NVSRAM (Non-Volatile SRAM)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.7 V
Write Cycle Time - Word, Page [custom]	45 ns
Write Cycle Time - Word, Page [custom]	45 ns

CY14B108 Series

Part	Technology	Memory Interface	Memory Format	Access Time	Mounting Type	Supplier Device Package	Memory Organization	Memory Size	Memory Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Write Cycle Time - Word, Page	Operating Temperature [Max]	Operating Temperature [Min]	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Memory Organization [custom]	Memory Organization [custom]	Package / Case	Package / Case
Infineon Technologies CY14B108N-BA25XIT	NVSRAM (Non-Volatile SRAM)	Parallel	NVSRAM	25 ns	Surface Mount	48-FBGA (6x10)	512 K	1024 KB	Non-Volatile	2.7 V	3.6 V	48-TFBGA	25 ns	85 °C	-40 °C
Infineon Technologies CY14B108N-BA45XI	NVSRAM (Non-Volatile SRAM)	Parallel	NVSRAM	45 ns	Surface Mount	48-FBGA (6x10)	512 K	1024 KB	Non-Volatile	2.7 V	3.6 V	48-TFBGA		85 °C	-40 °C	45 ns	45 ns
Infineon Technologies CY14B108M-ZSP45XI	NVSRAM (Non-Volatile SRAM)	Parallel	NVSRAM	45 ns	Surface Mount	54-TSOP II	512 K	1024 KB	Non-Volatile	2.7 V	3.6 V			85 °C	-40 °C	45 ns	45 ns
Infineon Technologies CY14B108N-ZSP25XIT	NVSRAM (Non-Volatile SRAM)	Parallel	NVSRAM	25 ns	Surface Mount	54-TSOP II	512 K	1024 KB	Non-Volatile	2.7 V	3.6 V		25 ns	85 °C	-40 °C
Infineon Technologies CY14B108N-ZSP45XIT	NVSRAM (Non-Volatile SRAM)	Parallel	NVSRAM	45 ns	Surface Mount	54-TSOP II	512 K	1024 KB	Non-Volatile	2.7 V	3.6 V			85 °C	-40 °C	45 ns	45 ns
Infineon Technologies CY14B108N-ZSP25XI	NVSRAM (Non-Volatile SRAM)	Parallel	NVSRAM	25 ns	Surface Mount	54-TSOP II	512 K	1024 KB	Non-Volatile	2.7 V	3.6 V		25 ns	85 °C	-40 °C
Infineon Technologies CY14B108L-ZS25XI	NVSRAM (Non-Volatile SRAM)	Parallel	NVSRAM	25 ns	Surface Mount	44-TSOP II		1024 KB	Non-Volatile	2.7 V	3.6 V	44-TSOP	25 ns	85 °C	-40 °C			1 M	8 bits	10.16 mm	10.16 mm
Infineon Technologies CY14B108L-BA45XI	NVSRAM (Non-Volatile SRAM)	Parallel	NVSRAM	45 ns	Surface Mount	48-FBGA (6x10)		1024 KB	Non-Volatile	2.7 V	3.6 V	48-TFBGA		85 °C	-40 °C	45 ns	45 ns	1 M	8 bits

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 53.61
		10	$ 49.72
		25	$ 47.94
		40	$ 46.75
		80	$ 40.96

Description

General part information

CY14B108 Series

NVSRAM (Non-Volatile SRAM) Memory IC 8Mbit Parallel 45 ns 48-FBGA (6x10)

Documents

Technical documentation and resources

No documents available
