5183
ActiveAdafruit Industries LLC

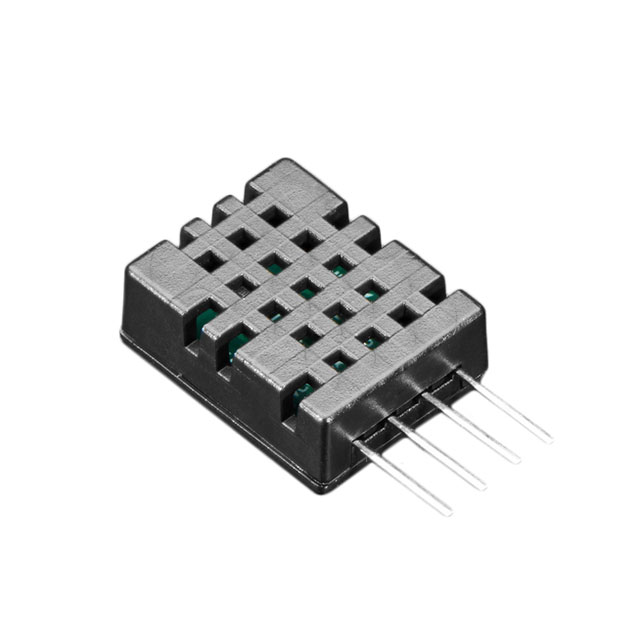

DHT20 - AHT20 PIN MODULE - I2C T
5183
ActiveAdafruit Industries LLC
DHT20 - AHT20 PIN MODULE - I2C T
Description
General part information
5183
Humidity, Temperature 0 ~ 100% RH I2C ±3% RH 8 s Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 5183 |
|---|---|
| Accuracy | 3 % RH |
| Humidity Range (Maximum) | 100 % RH |
| Humidity Range (Minimum) | 0 % RH |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Output Bits | 7 b |
| Output Type | I2C |
| Package / Case | 4-SIP Module |
| Package Name | 4-SIP |
| Response Time | 8 s |
| Sensor Type | Temperature, Humidity |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 2.2 V |
