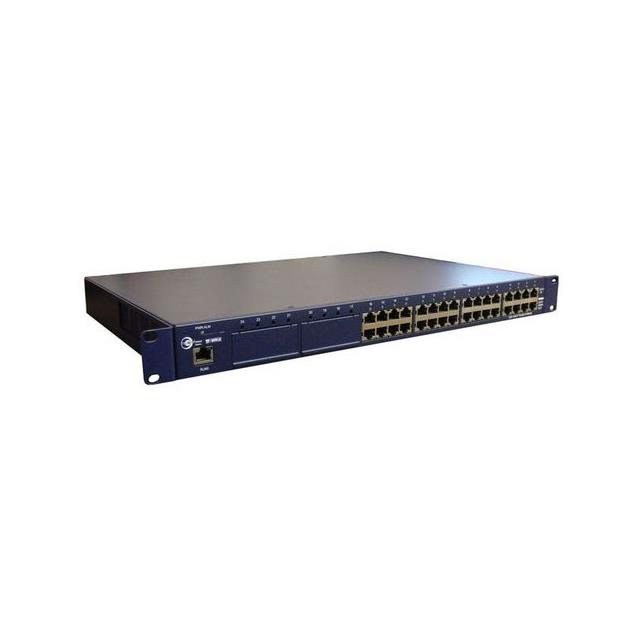

TP-MS616-ISO

Active

Tycon Systems Inc.

ISOLATED MID SPAN VERY HIGH POWE

Search across all available documentation for this part.

Active

Tycon Systems Inc.

ISOLATED MID SPAN VERY HIGH POWE

Technical Specifications

Parameters and characteristics for this part

ISOLATED MID SPAN VERY HIGH POWE

Part	Voltage - Input [Max]	Voltage - Input [Min]	Features	Power (Watts) - Per Port	Voltage - Output	Number of Ports	Type	Output Connector	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Input Connector	Data Rate	Compliance
Tycon Systems Inc. TP-MS616-ISO	240 VAC	100 VAC	OCP, OTP, OVP	35 W	56 V	32	Midspan Injector	RJ45 (Data, Power)	1.7 in	43.2 mm	429.3 mm	289.6 mm	16.9 in	11.4 in	Desktop	RJ45 (Data, Power)	10 Mbps, 100 Mbps, 1000 Mbps	IEEE802.3af, IEEE802.3at

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

56V Power Over Ethernet (POE) 32 Port Midspan Injector 10/100/1000 Mbps Data Rate
