936184-1

Active

TE Connectivity AMP Connectors

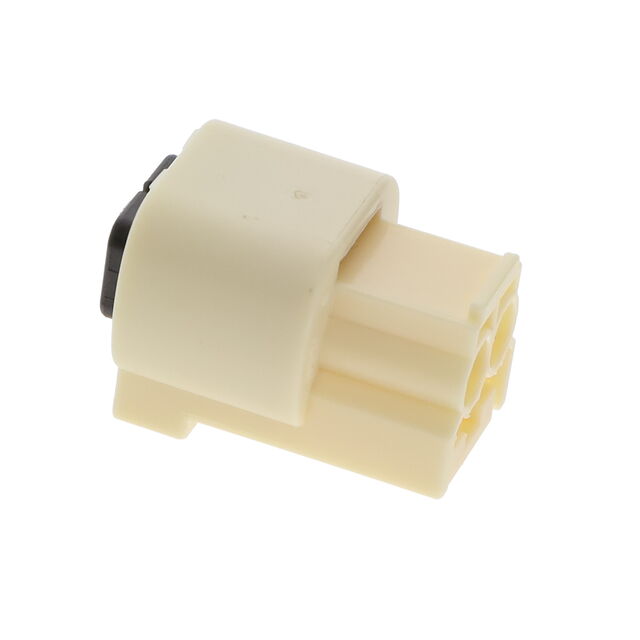

BULB CONN 2P PLUG ASSY IVORY

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

BULB CONN 2P PLUG ASSY IVORY

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	936184-1	936184 Series

Color	Ivory	Ivory, Black
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull, Latch Holder
Features	Sealed	Sealed
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	2	2
Number of Rows	1	1
Pitch [x]	5.59 mm	5.59 mm
Pitch [x]	0.22 in	0.22 in

BULB CONN 2P PLUG ASSY IVORY

Part	Number of Rows	Features	Connector Type	Fastening Type	Pitch [x]	Pitch [x]	Color	Contact Termination	Contact Type	Insulation Material	Number of Positions	Mounting Type	Note
TE Connectivity AMP Connectors 936184-1	1	Sealed	Plug	Push-Pull	5.59 mm	0.22 in	Ivory	Crimp	Female Socket	Polybutylene Terephthalate (PBT)	2	Free Hanging (In-Line)
TE Connectivity AMP Connectors 936184-2	1		Plug	Latch Holder			Black	Crimp	Female Socket	Polybutylene Terephthalate (PBT)	2	Free Hanging (In-Line)	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Plug Ivory 0.220" (5.59mm)
