2-1102665-5
ActiveTE Connectivity AMP Connectors

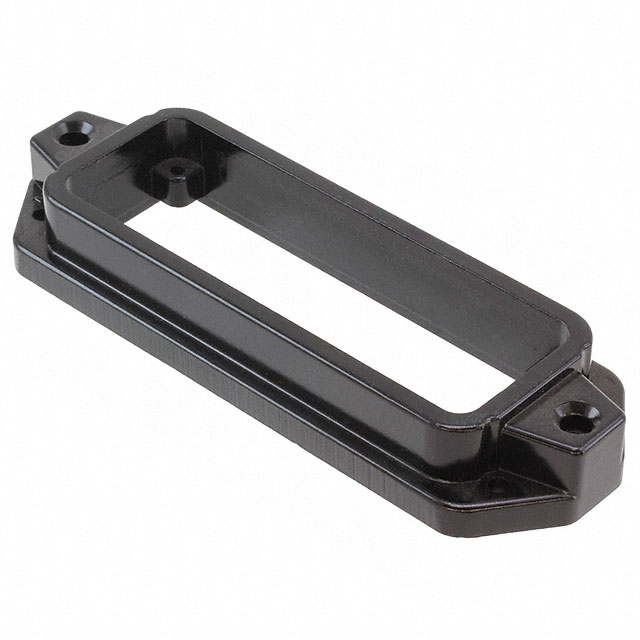

CONN BASE BOTTOM ENTRY SZ8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1102665-5
ActiveTE Connectivity AMP Connectors
CONN BASE BOTTOM ENTRY SZ8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1102665-5 |
|---|---|
| Connector Type | Base - Panel Mount |
| Housing Color | Black |
| Housing Finish | Aluminum Oxide |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Lock Location | Screw Locks on Hood |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Size | 8 |
| Size / Dimension [x] | 6.142 in |
| Size / Dimension [x] | 156 mm |
| Size / Dimension [y] | 56 mm |
| Size / Dimension [y] | 2.205 in |
| Size / Dimension [z] | 22 mm |
| Size / Dimension [z] | 0.866 " |
| Style | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 40 | $ 131.85 | |
1102665 Series
CONN BASE BOTTOM ENTRY SZ8
| Part | Style | Housing Finish | Lock Location | Connector Type | Size | Housing Material | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1102665-5 | Bottom Entry | Aluminum Oxide | Screw Locks on Hood | Base - Panel Mount | 8 | Aluminum Alloy, Die Cast | 6.142 in | 56 mm | 156 mm | 2.205 in | 22 mm | 0.866 " | IP68 - Dust Tight, Waterproof | -40 °C | 80 C | Black |
Description
General part information
1102665 Series
Base - Panel Mount Connector Bottom Entry 8 IP68 - Dust Tight, Waterproof
