YB26WRKW01

Active

NKK SWITCHES

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

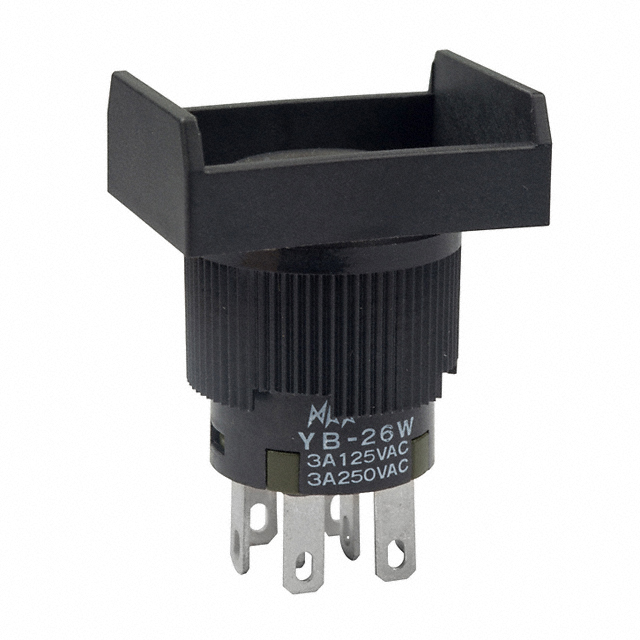

YB26WRKW01

Active

NKK SWITCHES

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YB26WRKW01	YB26WR Series

Actuator Marking	No Marking	No Marking
Actuator Type	Plunger for Cap	Rectangular, Button, Plunger for Cap
Circuit	DPDT	DPDT
Color - Actuator/Cap	-	Clear, Clear (Red Filter/Diffuser), Red
Current Rating (Amps)	3 A	0.4 - 3 VA
Electrical Life	100000 Cycles	100000 Cycles
Features	Voltage Reduction Lighting	Voltage Reduction Lighting
Illumination Type, Color	-	LED, Green, Red, Amber, Green/Red, Blue
Illumination Voltage (Nominal)	-	2 - 24 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	200000 Cycles	200000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	70 °C	50 - 70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16 mm	16 mm
Switch Function	On-On	On-On
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder
Termination Style	2.8 mm	2.8 mm
Type	Standard	Illuminated, Standard
Voltage Rating - AC	125 V	28 - 125 V
Voltage Rating - DC	30 V	28 - 30 V

YB26WR Series

SWITCH PUSH DPDT 0.4VA 28V

Part	Features	Illumination Voltage (Nominal)	Mechanical Life	Current Rating (Amps)	Actuator Type	Color - Actuator/Cap	Ingress Protection	Switch Function	Termination Style	Termination Style	Termination Style	Circuit	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Marking	Voltage Rating - DC	Type	Electrical Life	Illumination Type, Color	Panel Cutout Dimensions [diameter]
NKK SWITCHES YB26WRKG01-5F05-JB	Voltage Reduction Lighting	5 VDC	200000 Cycles	0.4 VA	Rectangular, Button	Clear	IP65 - Dust Tight, Water Resistant	On-On	0.11 in	Quick Connect, Solder	2.8 mm	DPDT	28 V	50 °C	-25 °C	Panel Mount, Front	No Marking	28 V	Illuminated, Standard	100000 Cycles	Green, LED	16 mm
NKK SWITCHES YB26WRKW01-5C12-JB	Voltage Reduction Lighting	12 VDC	200000 Cycles	3 A	Rectangular, Button	Clear	IP65 - Dust Tight, Water Resistant	On-On	0.11 in	Quick Connect, Solder	2.8 mm	DPDT	125 V	50 °C	-25 °C	Panel Mount, Front	No Marking	30 V	Illuminated, Standard	100000 Cycles	LED, Red	16 mm
NKK SWITCHES YB26WRKW01-JC	Voltage Reduction Lighting		200000 Cycles	3 A	Rectangular, Button	Clear (Red Filter/Diffuser)	IP65 - Dust Tight, Water Resistant	On-On	0.11 in	Quick Connect, Solder	2.8 mm	DPDT	125 V	70 °C	-25 °C	Panel Mount, Front	No Marking	30 V	Standard	100000 Cycles		16 mm
NKK SWITCHES YB26WRKW01-5F-JF	Voltage Reduction Lighting	2.2 VDC	200000 Cycles	3 A	Rectangular, Button	Clear	IP65 - Dust Tight, Water Resistant	On-On	0.11 in	Quick Connect, Solder	2.8 mm	DPDT	125 V	50 °C	-25 °C	Panel Mount, Front	No Marking	30 V	Illuminated, Standard	100000 Cycles	Green, LED	16 mm
NKK SWITCHES YB26WRKW01-5F-JB	Voltage Reduction Lighting	2.2 VDC	200000 Cycles	3 A	Rectangular, Button	Clear	IP65 - Dust Tight, Water Resistant	On-On	0.11 in	Quick Connect, Solder	2.8 mm	DPDT	125 V	50 °C	-25 °C	Panel Mount, Front	No Marking	30 V	Illuminated, Standard	100000 Cycles	Green, LED	16 mm
NKK SWITCHES YB26WRKW01-5D12-JD	Voltage Reduction Lighting	12 VDC	200000 Cycles	3 A	Rectangular, Button	Clear	IP65 - Dust Tight, Water Resistant	On-On	0.11 in	Quick Connect, Solder	2.8 mm	DPDT	125 V	50 °C	-25 °C	Panel Mount, Front	No Marking	30 V	Illuminated, Standard	100000 Cycles	Amber, LED	16 mm
NKK SWITCHES YB26WRKW01/C	Voltage Reduction Lighting		200000 Cycles	3 A	Plunger for Cap		IP65 - Dust Tight, Water Resistant	On-On	0.11 in	Quick Connect, Solder	2.8 mm	DPDT	125 V	70 °C	-25 °C	Panel Mount, Front	No Marking	30 V	Standard	100000 Cycles		16 mm
NKK SWITCHES YB26WRKW01-2CF24-JB	Voltage Reduction Lighting	24 V	200000 Cycles	3 A	Rectangular, Button	Clear	IP65 - Dust Tight, Water Resistant	On-On	0.11 in	Quick Connect, Solder	2.8 mm	DPDT	125 V	50 °C	-25 °C	Panel Mount, Front	No Marking	30 V	Illuminated, Standard	100000 Cycles	Green/Red, LED	16 mm
NKK SWITCHES YB26WRKW01-5D24-JB	Voltage Reduction Lighting	24 V	200000 Cycles	3 A	Rectangular, Button	Clear	IP65 - Dust Tight, Water Resistant	On-On	0.11 in	Quick Connect, Solder	2.8 mm	DPDT	125 V	50 °C	-25 °C	Panel Mount, Front	No Marking	30 V	Illuminated, Standard	100000 Cycles	Amber, LED	16 mm
NKK SWITCHES YB26WRKG01	Voltage Reduction Lighting		200000 Cycles	0.4 VA	Plunger for Cap		IP65 - Dust Tight, Water Resistant	On-On	0.11 in	Quick Connect, Solder	2.8 mm	DPDT	28 V	70 °C	-25 °C	Panel Mount, Front	No Marking	28 V	Standard	100000 Cycles		16 mm
