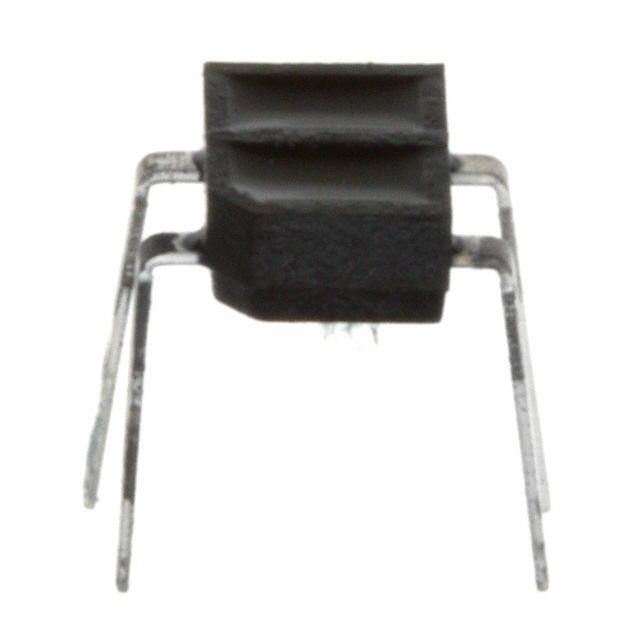

CNB23010R0LF
ObsoletePanasonic Electronic Components
SENSR OPTO TRANS 1MM REFL TH PCB
CNB23010R0LF
ObsoletePanasonic Electronic Components
SENSR OPTO TRANS 1MM REFL TH PCB
Description
General part information
CNB23010R0LF
Reflective Optical Sensor 0.039" (1mm) PCB Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | CNB23010R0LF |
|---|---|
| Current - Collector (Ic) (Max) | 0.03 mA |
| Current - DC Forward (If) (Max) | 50 mA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | Photodarlington |
| Package / Case | PCB Mount |
| Response Time | 150 µs |
| Sensing Distance | 0.039 " |
| Sensing Method | Reflective |
| Voltage - Collector Emitter Breakdown (Max) | 20 V |
