MAL203134221E3
ActiveVishay Dale
CAPACITOR,220UF,10VDC,10-% TOL,50+% TOL
MAL203134221E3
ActiveVishay Dale
CAPACITOR,220UF,10VDC,10-% TOL,50+% TOL
Description
General part information
MAL203134221E3

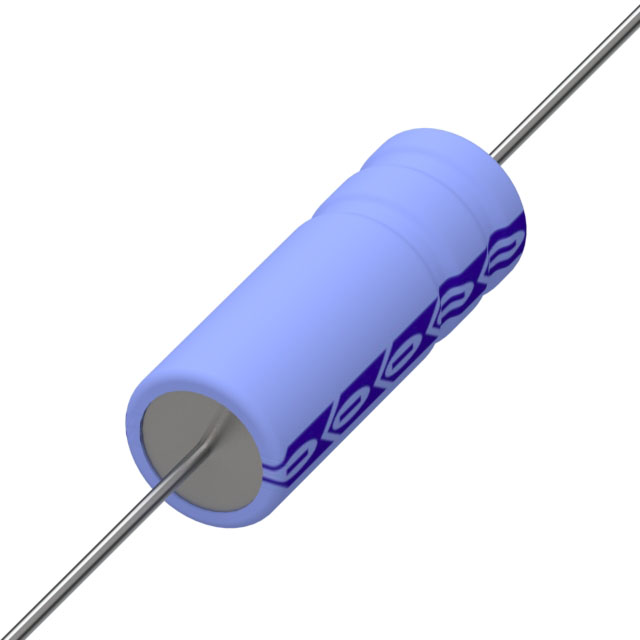

220 µF 10 V Aluminum Electrolytic Capacitors Axial, Can 1.45Ohm @ 100Hz 3000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL203134221E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 220 µF |
| ESR (Equivalent Series Resistance) | 1.45 Ohm |
| Impedance | 730 mOhms |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 210 mA |
| Size / Dimension Diameter | 0.256 in |
| Size / Dimension Length | 0.709 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 50 % |
| Voltage - Rated | 10 V |
