BPM15-150-Q12N-C
ActiveMurata Power Solutions Inc.

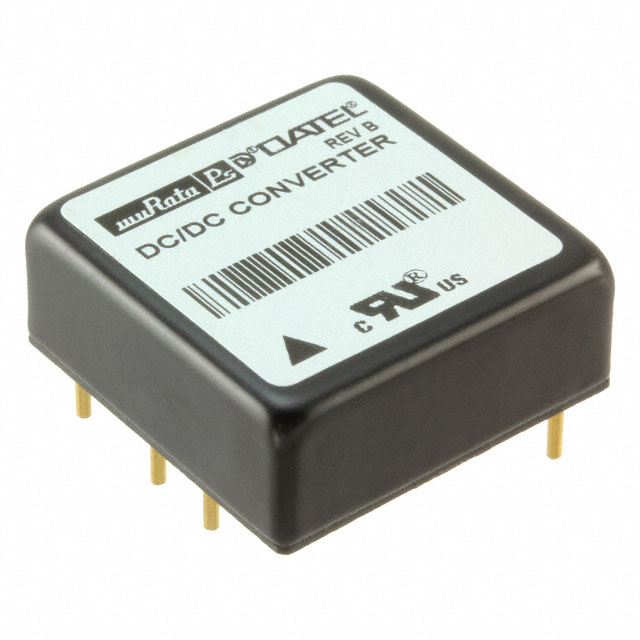

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 15 W, 2 OUTPUT, 15 V, 500 MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BPM15-150-Q12N-C
ActiveMurata Power Solutions Inc.
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 15 W, 2 OUTPUT, 15 V, 500 MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BPM15-150-Q12N-C | BPM15 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active Low, Enable | Active High, Enable, Active Low |
| Current - Output (Max) | 500 mA | 1.5 - 625 mA |
| Current - Output (Max) | 500 mA | 500 mA |
| Current - Output (Max) | - | 1.5 - 625 A |
| Efficiency | 84.5 % | 81.4 - 86 % |
| Features | Remote On/Off, OVP, SCP, OTP | Remote On/Off, OVP, SCP, OTP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 6-DIP Module | 6-DIP Module |
| Power (Watts) | 15 W | 15 W |
| Size / Dimension [x] | 1 in | 1 in |
| Size / Dimension [x] | 25.4 mm | 25.4 mm |
| Size / Dimension [y] | 25.4 mm | 25.4 mm |
| Size / Dimension [y] | 25.4 mm | 25.4 mm |
| Size / Dimension [z] | 0.4 " | 0.4 " |
| Size / Dimension [z] | 10.2 mm | 10.2 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V | 36 - 75 V |
| Voltage - Input (Min) [Min] | 9 V | 9 - 18 V |
| Voltage - Isolation | 1.6 kV | 1.6 kV |
| Voltage - Output 1 | 15 V | 5 - 15 V |
| Voltage - Output 2 | -15 V | -15 - -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
BPM15 Series
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 15 W, 2 OUTPUT, 15 V, 500 MA
| Part | Voltage - Output 1 | Control Features | Voltage - Input (Max) [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Current - Output (Max) | Current - Output (Max) | Number of Outputs | Efficiency | Features | Voltage - Input (Min) [Min] | Power (Watts) | Voltage - Output 2 | Type | Package / Case | Mounting Type | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. BPM15-150-Q12N-C | |||||||||||||||||||||||||
Murata Power Solutions Inc. BPM15-150-Q12P-C | 15 V | Active High, Enable | 36 V | 0.4 " | 25.4 mm | 1 in | 25.4 mm | 25.4 mm | 10.2 mm | 1.6 kV | 85 °C | -40 °C | ITE (Commercial) | 500 mA | 500 mA | 2 | 84.5 % | OTP, OVP, Remote On/Off, SCP | 9 V | 15 W | -15 V | Isolated Module | 6-DIP Module | Through Hole | |
Murata Power Solutions Inc. BPM15-150-Q12N-C | 15 V | Active Low, Enable | 36 V | 0.4 " | 25.4 mm | 1 in | 25.4 mm | 25.4 mm | 10.2 mm | 1.6 kV | 85 °C | -40 °C | ITE (Commercial) | 500 mA | 500 mA | 2 | 84.5 % | OTP, OVP, Remote On/Off, SCP | 9 V | 15 W | -15 V | Isolated Module | 6-DIP Module | Through Hole | |
Murata Power Solutions Inc. BPM15-050-Q48N-C | 5 V | Active Low, Enable | 75 V | 0.4 " | 25.4 mm | 1 in | 25.4 mm | 25.4 mm | 10.2 mm | 1.6 kV | 85 °C | -40 °C | ITE (Commercial) | 1.5 A | 2 | 81.4 % | OTP, OVP, Remote On/Off, SCP | 18 V | 15 W | -5 V | Isolated Module | 6-DIP Module | Through Hole | 1.5 A | |
Murata Power Solutions Inc. BPM15-120-Q48-C | 12 V | 75 V | 0.4 " | 25.4 mm | 1 in | 25.4 mm | 25.4 mm | 10.2 mm | 1.6 kV | 85 °C | -40 °C | ITE (Commercial) | 625 mA | 2 | 85 % | OTP, OVP, SCP | 18 V | 15 W | -12 V | Isolated Module | 6-DIP Module | Through Hole | 625 mA | ||
Murata Power Solutions Inc. BPM15-150-Q48-C | 15 V | 75 V | 0.4 " | 25.4 mm | 1 in | 25.4 mm | 25.4 mm | 10.2 mm | 1.6 kV | 85 °C | -40 °C | ITE (Commercial) | 500 mA | 500 mA | 2 | 86 % | OTP, OVP, SCP | 18 V | 15 W | -15 V | Isolated Module | 6-DIP Module | Through Hole | ||
Murata Power Solutions Inc. BPM15-050-Q12P-C | 5 V | Active High, Enable | 36 V | 0.4 " | 25.4 mm | 1 in | 25.4 mm | 25.4 mm | 10.2 mm | 1.6 kV | 85 °C | -40 °C | ITE (Commercial) | 1.5 A | 2 | 84 % | OTP, OVP, Remote On/Off, SCP | 9 V | 15 W | -5 V | Isolated Module | 6-DIP Module | Through Hole | 1.5 A |
Description
General part information
BPM15 Series
Isolated Module DC DC Converter 2 Output 15V -15V 500mA, 500mA 9V - 36V Input
Documents
Technical documentation and resources
