CD73NP-121KC
ActiveSumida America Components Inc.
FIXED IND 120UH 490MA 536MOHM SM
CD73NP-121KC
ActiveSumida America Components Inc.
FIXED IND 120UH 490MA 536MOHM SM
Description
General part information
CD73NP-121KC

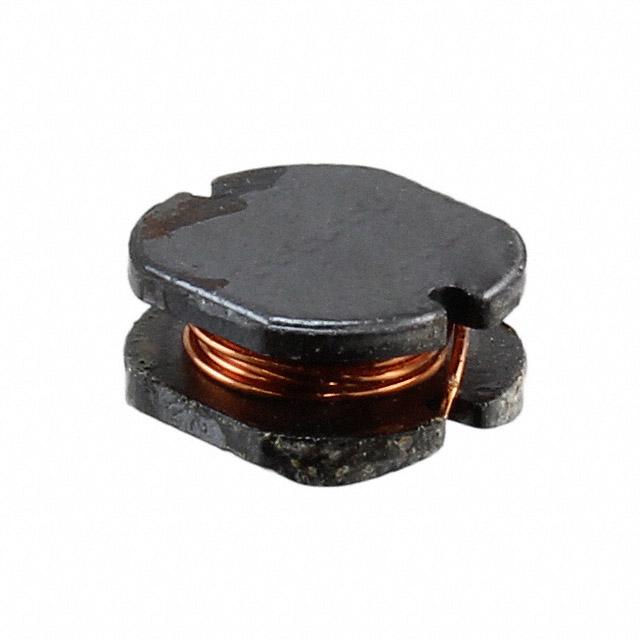

120 µH Unshielded Inductor 490 mA 536mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CD73NP-121KC |
|---|---|
| Current Rating | 490 mA |
| DC Resistance (DCR) (Max) | 536 mOhm |
| Height - Seated (Max) | 0.157 in |
| Inductance | 120 µH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.307 in |
| Size / Dimension Width | 0.276 in |
| Tolerance | 10 % |
