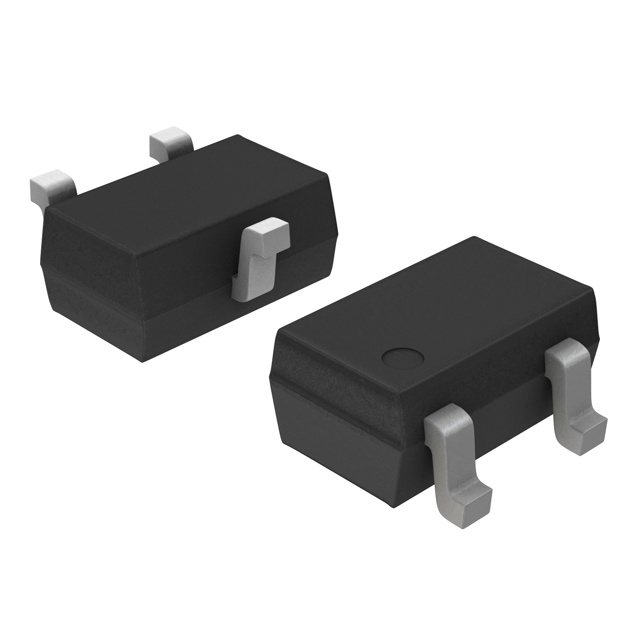

UM803

Active

Union Semiconductor International Limited

POWER SUPERVISOR 1CH

Search across all available documentation for this part.

Active

Union Semiconductor International Limited

POWER SUPERVISOR 1CH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Supervisor Channel

Technical documentation and resources

Specification	UM803	UM803 Series

Mounting Type	Surface Mount	Surface Mount
Number of Voltages Monitored	-	1
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output	-	Open Drain or Open Collector
Package / Case	-	SOT-23-3, TO-236-3, SC-59
Reset	-	Active Low
Reset Timeout	-	140 ms
Supplier Device Package	-	SOT-23-3
Type	-	Simple Reset/Power-On Reset
Voltage - Threshold	-	2.63 V

Part	Mounting Type	Voltage - Threshold	Reset Timeout [Min]	Output	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Type	Reset	Package / Case	Number of Voltages Monitored
Union Semiconductor International Limited UM803RS	Surface Mount	2.63 V	140 ms	Open Drain or Open Collector	85 °C	-40 °C	SOT-23-3	Simple Reset/Power-On Reset	Active Low	SC-59, SOT-23-3, TO-236-3	1
Union Semiconductor International Limited UM803	Surface Mount
