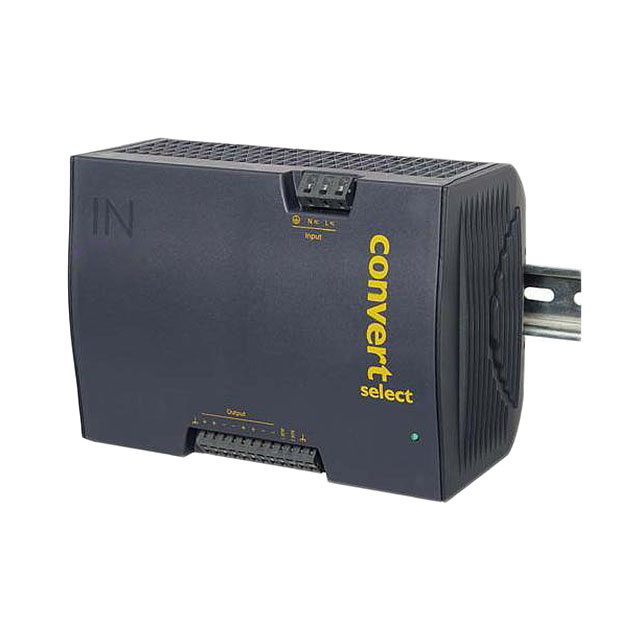

LXR1701-6G

Active

Bel Power Solutions

AC/DC DIN RAIL SUPPLY 37V 375W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC DIN RAIL SUPPLY 37V 375W

Technical Specifications

Parameters and characteristics for this part

Specification	LXR1701-6G

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	cCSAus, CE
Current - Output (Max) [Max]	10 A
Efficiency	87 %
Features	Adjustable Output, Load Sharing, Universal Input, PFC
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	375 W
Size / Dimension [x]	194 mm
Size / Dimension [x]	7.64 in
Size / Dimension [y]	106.6 mm
Size / Dimension [y]	4.47 "
Size / Dimension [z]	138 mm
Size / Dimension [z]	5.43 "
Voltage - Isolation	2.8 kV
Voltage - Output 1	37 V

AC/DC DIN RAIL SUPPLY 37V 375W

Part	Power (Watts)	Efficiency	Number of Outputs	Voltage - Isolation	Approval Agency	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Features	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Current - Output (Max) [Max]
Bel Power Solutions LXR1701-6G	375 W	87 %	1	2.8 kV	cCSAus, CE	85 VAC	264 VAC	37 V	138 mm	106.6 mm	194 mm	5.43 "	4.47 "	7.64 in	Adjustable Output, Load Sharing, PFC, Universal Input	AC	-40 °C	60 °C	ITE (Commercial)	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 664.58

General part information

AC/DC DIN RAIL SUPPLY 37V 375W

Technical documentation and resources

No documents available
