HHR-380AB27F4
ActivePanasonic Energy
BATTERY PACK NIMH 4.8V L-A
HHR-380AB27F4
ActivePanasonic Energy
BATTERY PACK NIMH 4.8V L-A
Description
General part information
HHR-380AB27F4

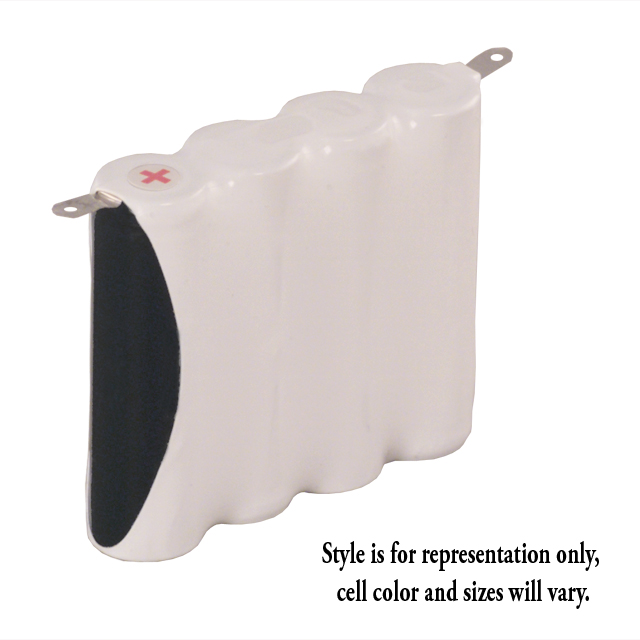

L-A 4.8 V Nickel Metal Hydride Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | HHR-380AB27F4 |
|---|---|
| Battery Cell Size | L-A |
| Battery Chemistry | Nickel Metal Hydride |
| Capacity (Charge) | 3.7 Ah |
| Note | Battery packs made with NIMH cells include a thermostat. |
| Number of Cells | 4 |
| Rechargeability | Yes |
| Size / Dimension Height | 2.64 in |
| Size / Dimension Length | 2.68 in |
| Size / Dimension Width | 0.67 in |
| Structure | Side to Side |
| Structure Cells | 4 |
| Structure Rows | 1 |
| Termination Style | Solder Tab |
| Voltage - Rated | 4.8 V |
| Weight | 212.28 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
