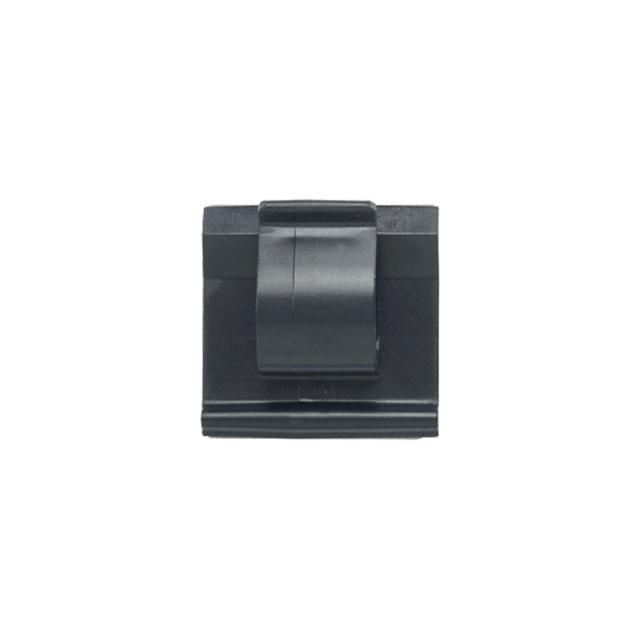

ACC19-A-M20

Active

Panduit Corp

FASTENER, ADHESIVE BACKED CABLE CLIP, NYLON 6.6 (POLYAMIDE 6.6), BLACK, 16 MM, 19.3 MM

Search across all available documentation for this part.

Active

Panduit Corp

FASTENER, ADHESIVE BACKED CABLE CLIP, NYLON 6.6 (POLYAMIDE 6.6), BLACK, 16 MM, 19.3 MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ACC19-A-M20	ACC19 Series

Adhesive	Rubber Based	Rubber Based, User Supplied, Acrylic Based
Color	Black	Black, Natural
Features	-	Weather Resistant
Height [z]	6.35 mm	6.35 mm
Height [z]	6.35 mm	6.35 mm
Length [x]	0.63 in	0.63 in
Length [x]	16 mm	16 mm
Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mounting Type	Adhesive	Adhesive
Opening Size	4.83 mm	4.83 mm
Opening Size [z]	0.19 in	0.19 in
Type	C-Type, Clip	C-Type, Clip
Width	19.3 mm	19.3 mm
Width	0.76 "	0.76 "

FASTENER, ADHESIVE BACKED CABLE CLIP, NYLON 6.6 (POLYAMIDE 6.6), BLACK, 16 MM, 19.3 MM

Part	Length [x]	Length [x]	Opening Size	Opening Size [z]	Height [z]	Height [z]	Mounting Type	Type	Color	Adhesive	Material	Width	Width	Features
Panduit Corp ACC19-A-M20	0.63 in	16 mm	4.83 mm	0.19 in	6.35 mm	6.35 mm	Adhesive	C-Type, Clip	Black	Rubber Based	Polyamide (PA66), Nylon 6/6	19.3 mm	0.76 "
Panduit Corp ACC19-A-L	0.63 in	16 mm	4.83 mm	0.19 in	6.35 mm	6.35 mm	Adhesive	C-Type, Clip	Natural	Rubber Based	Polyamide (PA66), Nylon 6/6	19.3 mm	0.76 "
Panduit Corp ACC19-A-C20	0.63 in	16 mm	4.83 mm	0.19 in	6.35 mm	6.35 mm	Adhesive	C-Type, Clip	Black	Rubber Based	Polyamide (PA66), Nylon 6/6	19.3 mm	0.76 "
Panduit Corp ACC19-A-C	0.63 in	16 mm	4.83 mm	0.19 in	6.35 mm	6.35 mm	Adhesive	C-Type, Clip	Natural	Rubber Based	Polyamide (PA66), Nylon 6/6	19.3 mm	0.76 "
Panduit Corp ACC19-M20	0.63 in	16 mm	4.83 mm	0.19 in	6.35 mm	6.35 mm	Adhesive	C-Type, Clip	Black	User Supplied	Polyamide (PA66), Nylon 6/6	19.3 mm	0.76 "
Panduit Corp ACC19-AT-M0	0.63 in	16 mm	4.83 mm	0.19 in	6.35 mm	6.35 mm	Adhesive	C-Type, Clip	Black	Acrylic Based	Polyamide (PA66), Nylon 6/6	19.3 mm	0.76 "	Weather Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, C-Type Black Adhesive 0.190" (4.83mm)
