F24-100

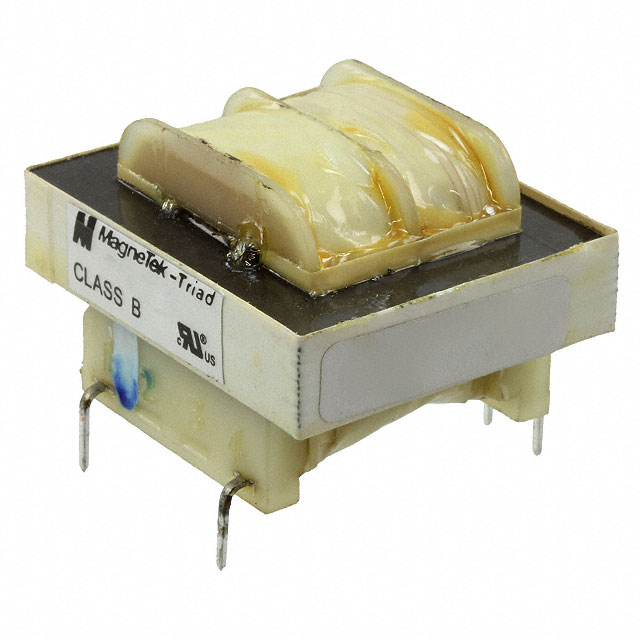

PWR XFMR LAMINATED 2.5VA TH
Technical Specifications
Parameters and characteristics for this part
| Specification | F24-100 |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 200 mA |
| Current - Output (Max) Series | 100 mA |
| Height - Seated (Max) | 30.15 mm |
| Mounting Type | Through Hole |
| Power - Max | 2.5 VA |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 34.93 mm |
| Size / Dimension Width | 28.58 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Isolation | 2500 Vrms |
| Voltage - Primary | 115 V |
| Voltage - Secondary (Full Load) (Parallel) | 12 V |
| Voltage - Secondary (Full Load) (Series) | 24 V |
| Weight | 0.25 lbs |
