LSWM1QSTK1-C
ActiveMcGill Microwave Systems
COMPATIBLE DAC 40G 3M
LSWM1QSTK1-C
ActiveMcGill Microwave Systems
COMPATIBLE DAC 40G 3M
Description
General part information
LSWM1QSTK1-C

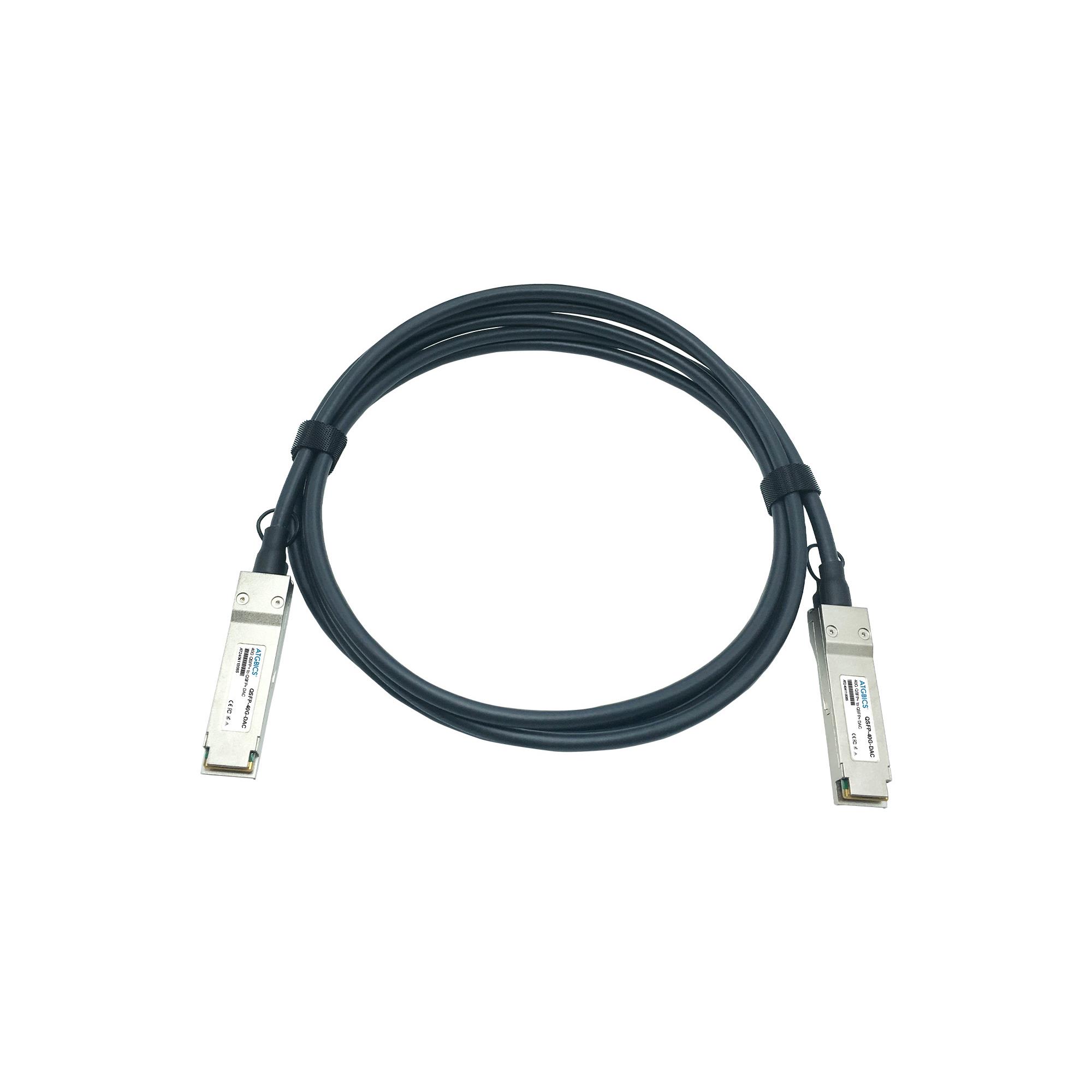

38 Position QSFP+ to QSFP+ Plug to Plug 9.84' (3.00m) Black Unshielded
Technical Specifications
Parameters and characteristics for this part
| Specification | LSWM1QSTK1-C |
|---|---|
| Cable Connectors | QSFP+ |
| Cable Type | Round, Twin Axial |
| Color | Black |
| Connector Type | Plug to Plug |
| Fastening Type | Latch Lock, Push-Pull |
| Features | Passive |
| Frequency - Max | 40 Gbps |
| Gender | Male to Male |
| Length | 9.84 ft |
| Number of Positions | 38 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Shielding | Unshielded |
| Usage | Ethernet, Data Center Server Rack, Network |
| Wire Gauge | 28 AWG |
