1020KPOHC
ActiveKanebridge
SELF-DRILLING SCREW - TYPE BSD -
1020KPOHC
ActiveKanebridge
SELF-DRILLING SCREW - TYPE BSD -
Description
General part information
1020KPOHC

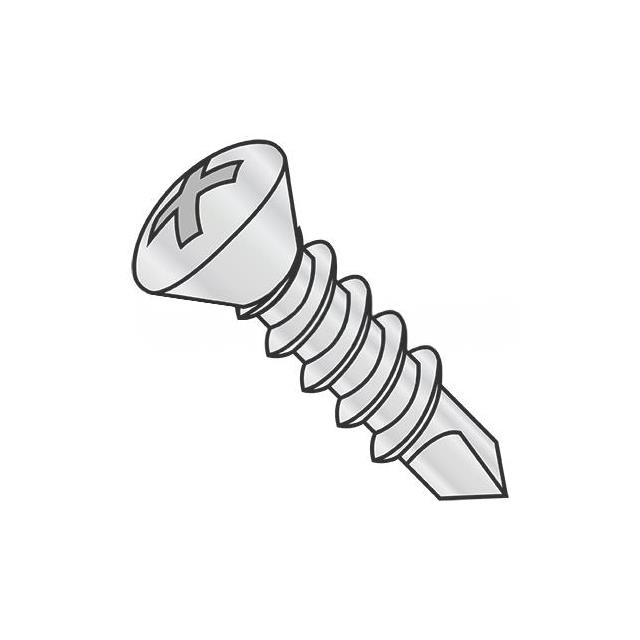

#10-16 Oval Head Self-Drilling Screw Phillips Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 1020KPOHC |
|---|---|
| Drive Type | Phillips |
| Features | Standard |
| Head Diameter | 0.348 in |
| Head Height | 0.176 in |
| Length - Below Head | 1.25 in |
| Length - Overall | 1.426 in |
| Material | Steel |
| Plating | Zinc |
| Screw Head Type | Oval Head |
| Thread Size (Max) | 16 mm |
| Thread Size (Min) | 10 mm |
| Type | Self-Drilling Screw |
