EZ-500-NMH-X

Active

Amphenol Times Microwave Systems

N-MALE (PLUG) CRIMP CONNECTOR (N

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

N-MALE (PLUG) CRIMP CONNECTOR (N

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	50	$ 23.85

General part information

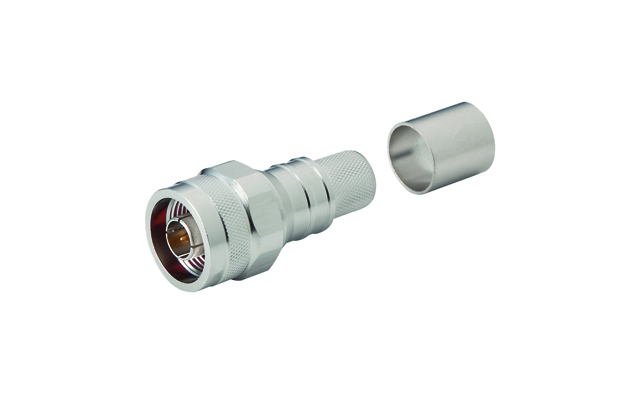

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Push On

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	EZ-500-NMH-X	EZ-500 Series

Body Finish	White Bronze	Tin, White Bronze
Body Material	Brass	Brass
Cable Group	LMR-500	LMR-500
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	N Type	7/16 DIN, 4.3/10, N Type
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Push On	Push On
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz	7.5 - 6000 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	155 °C	85 - 155 °C
Operating Temperature [Min]	-55 °C	-55 - -40 °C
Shield Termination	Crimp	Crimp
Voltage Rating	500 V	500 V

7/16-MALE (PLUG) RIGHT ANGLE CRI

Part	Mounting Type	Connector Style	Connector Type	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Cable Group	Impedance	Shield Termination	Number of Ports	Center Contact Plating	Housing Color	Frequency - Max [Max]	Body Finish	Center Contact Material	Body Material	Dielectric Material	Voltage Rating	Mating Cycles
Amphenol Times Microwave Systems EZ-500-716M-RA-X	Free Hanging (In-Line), Right Angle	7/16 DIN	Male Pin, Plug	Push On	85 °C	-40 °C	LMR-500	50 Ohms	Crimp	1	Gold	Silver	7.5 GHz
Amphenol Times Microwave Systems EZ-500-716M-X	Free Hanging (In-Line)	7/16 DIN	Male Pin, Plug	Push On	85 °C	-40 °C	LMR-500	50 Ohms	Crimp	1	Gold	Silver	7.5 GHz
Amphenol Times Microwave Systems EZ-500-4310M-RA-X	Free Hanging (In-Line), Right Angle	4.3/10	Male Pin, Plug	Push On	125 °C	-40 °C	LMR-500	50 Ohms	Crimp	1	Gold	Silver	6000 MHz	Tin	Beryllium Copper	Brass	Polytetrafluoroethylene (PTFE)
Amphenol Times Microwave Systems EZ-500-NMH-X	Free Hanging (In-Line)	N Type	Male Pin, Plug	Push On	155 °C	-55 °C	LMR-500	50 Ohms	Crimp	1	Gold	Silver	6000 MHz	White Bronze	Beryllium Copper	Brass	Polytetrafluoroethylene (PTFE)	500 V	500
Amphenol Times Microwave Systems EZ-500-4310M-X	Free Hanging (In-Line)	4.3/10	Male Pin, Plug	Push On	125 °C	-40 °C	LMR-500	50 Ohms	Crimp	1	Gold	Silver	6000 MHz	Tin	Beryllium Copper	Brass	Polytetrafluoroethylene (PTFE)
