1-2444090-1
ActiveTE Connectivity AMP Connectors

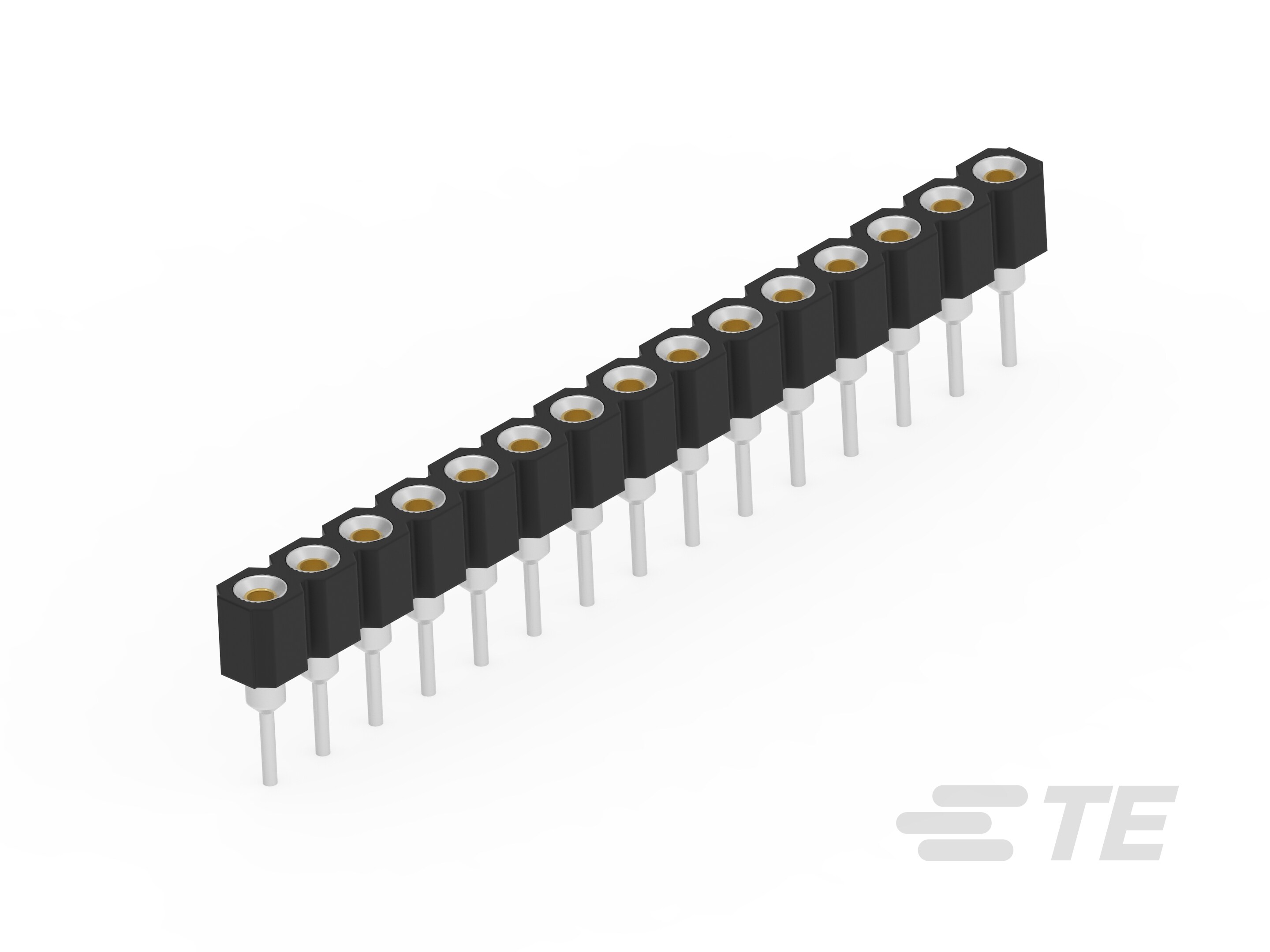

SIP IC SKT 15P AU FLASH
1-2444090-1
ActiveTE Connectivity AMP Connectors
SIP IC SKT 15P AU FLASH
Description
General part information
1-2444090-1
15 Position, 2.54 mm [.1 in] Centerline, Through Hole, Signal, SIP Sockets
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2444090-1 |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | 78.7 µin |
| Contact Material - Mating | Copper Alloy |
| Contact Material - Post | Copper Alloy |
| Housing Material | Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 15 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Type | SIP |
