Description
General part information
PE100A V2.0

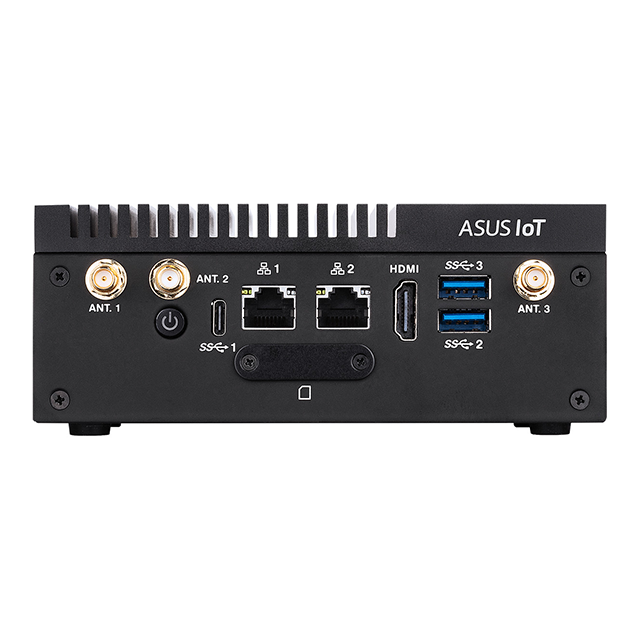

I.MX 8M QUAD FANLESS GATEWAY 4G
Technical Specifications
Parameters and characteristics for this part
| Specification | PE100A V2.0 |
|---|---|
| Core Processor | NXP® i.MX 8M ARM Cortex-A53 Quad Core |
| Display Type | No Display |
| Expansion Type | M.2 |
| Features | SD Card Slot (32GB) |
| Memory Max Capacity | 4 GB |
| Memory Type | DDR4 |
| Mounting Type | Panel Mount |
| Operating System | Windows 10, Linux |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Storage Capacity | 16 GB |
| Storage Type | eMMC |
| Type | Box PC |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
