CCS316-08
ActivePasternack
COAX CBL SMA TO SMA 7.9"
CCS316-08
ActivePasternack
COAX CBL SMA TO SMA 7.9"
Description
General part information
CCS316-08

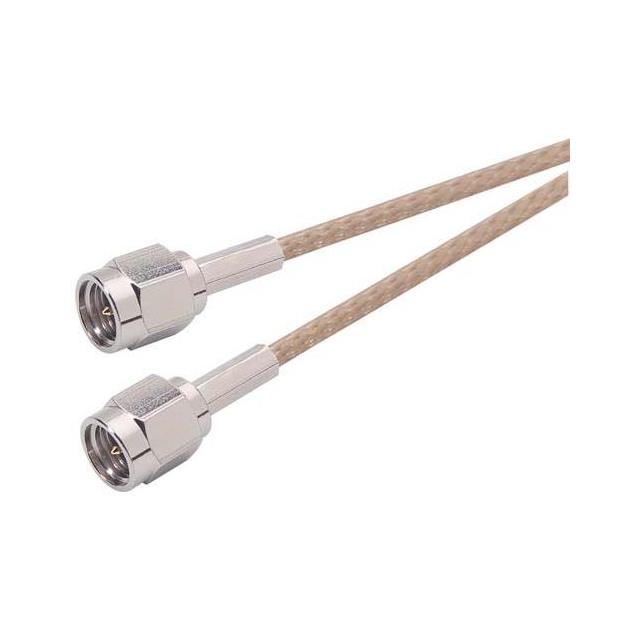

Cable Assembly Coaxial SMA to SMA RG-316 7.920" (201.17mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CCS316-08 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 316 |
| Color | Brown |
| Length | 0.66 ft |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -70 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA |
