2834112-4
ActiveTE Connectivity AMP Connectors

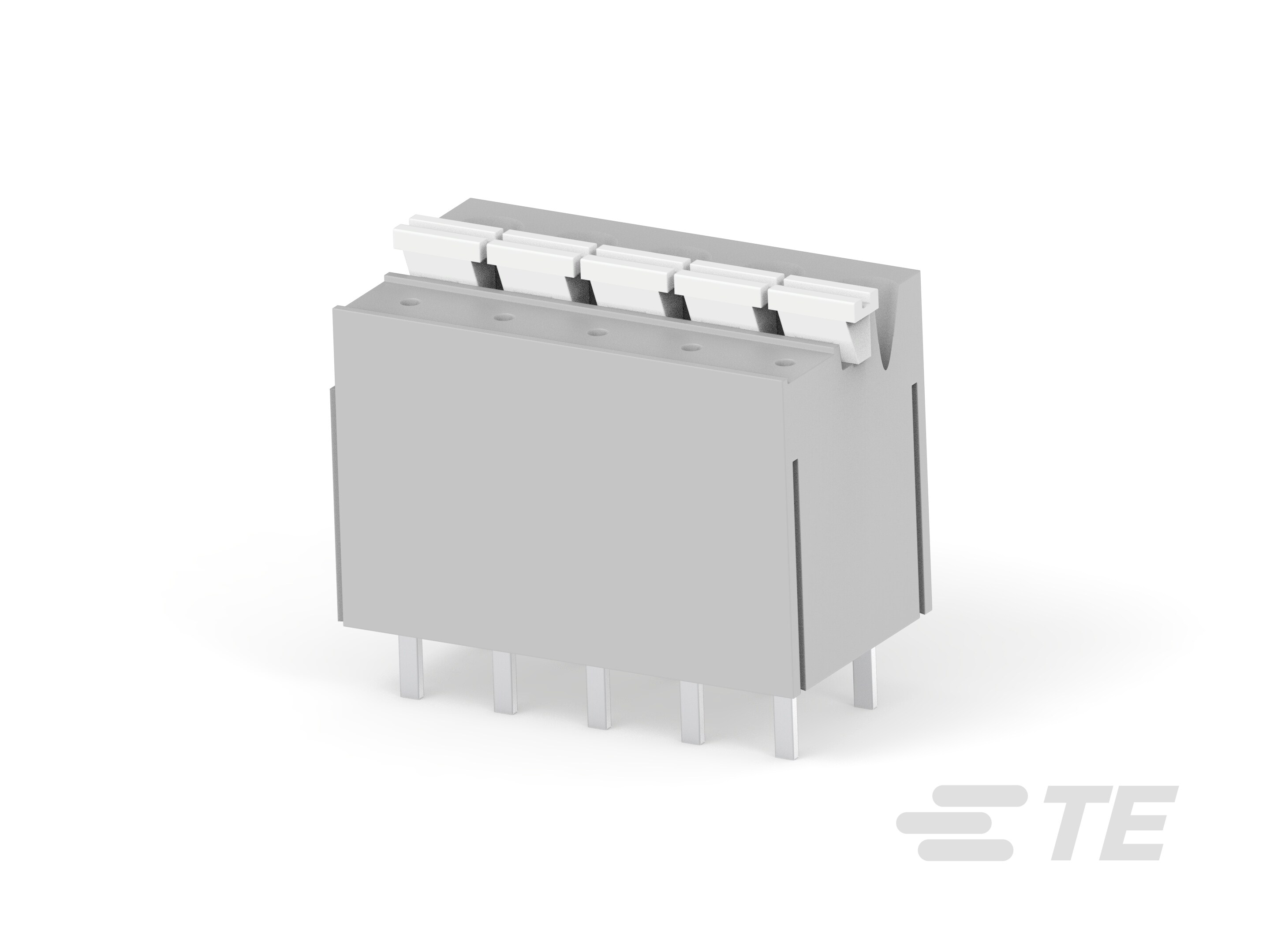

5.08MM TOP ENTRY MSC 5P_GY
2834112-4
ActiveTE Connectivity AMP Connectors
5.08MM TOP ENTRY MSC 5P_GY
Description
General part information
2834112-4
5 Position PCB Terminal Block, Receptacle, Wire-to-Board, 5.08 mm [.02 in] Centerline, 1 Row, 180° Wire Entry Angle, 26 – 16 AWG, .14 – 1.5 mm² Wire
Technical Specifications
Parameters and characteristics for this part
| Specification | 2834112-4 |
|---|---|
| Color | Gray |
| Current | 10 A |
| Features | Interlocking (Side) |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 5 |
| Positions Per Level | 1 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
