UTSX6JC1210SX
ActiveAmphenol Aerospace Operations

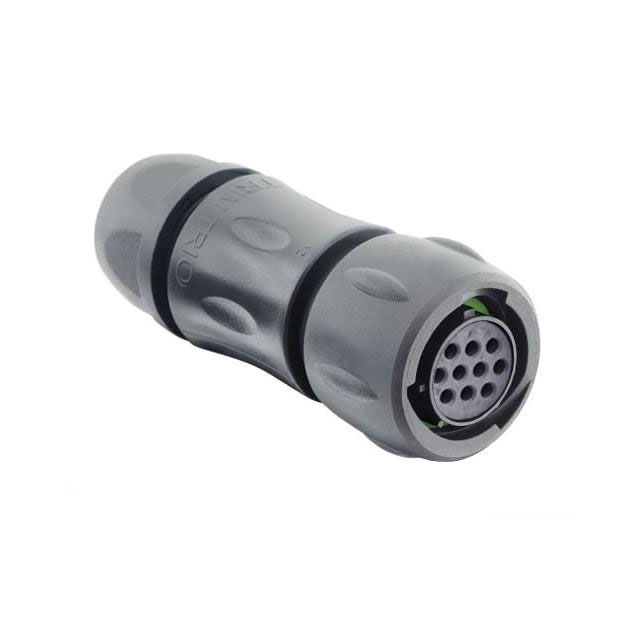

PLUG, WITH CABLE GLAND BACKSHELL
UTSX6JC1210SX
ActiveAmphenol Aerospace Operations
PLUG, WITH CABLE GLAND BACKSHELL
Description
General part information
UTSX6JC1210SX
10 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut, UV Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | UTSX6JC1210SX |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 20 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Backshell, Coupling Nut, UV Resistant |
| Housing Color | Black |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP68 |
| Insert Material | PA, Nylon, Polyamide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 10 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | X |
| Primary Material | Plastic |
| Shell Material | Nylon, Polyamide (PA) |
| Shell Size - Insert Length | 12 mm |
| Shell Size - Insert Width | 10 mm |
| Shielding | Unshielded |
| Type | For Female Sockets |
