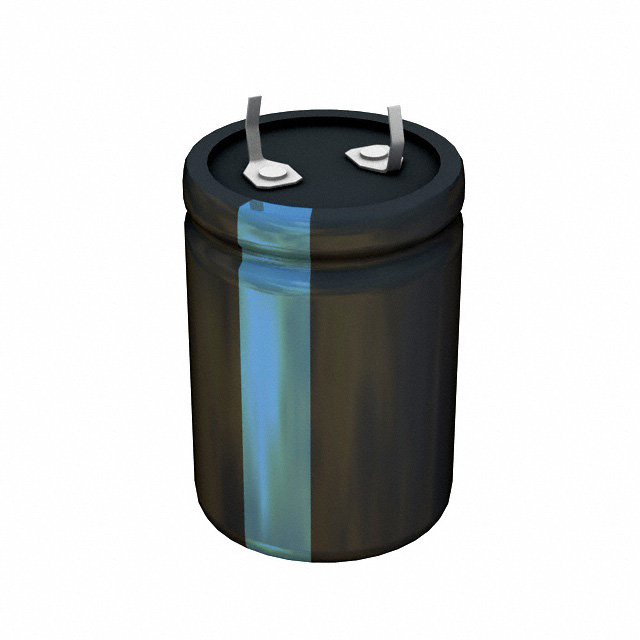

Specification	381LQ471M250J032

Applications	General Purpose
Capacitance	470 µF
ESR (Equivalent Series Resistance)	353 mOhm
Height - Seated (Max)	1.457 in
Lead Spacing	0.394 in
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Snap-In, Radial
Polarization	Polar
Ripple Current	1.3 A
Size / Dimension Diameter	0.984 in
Tolerance	20 %
Voltage - Rated	250 V
