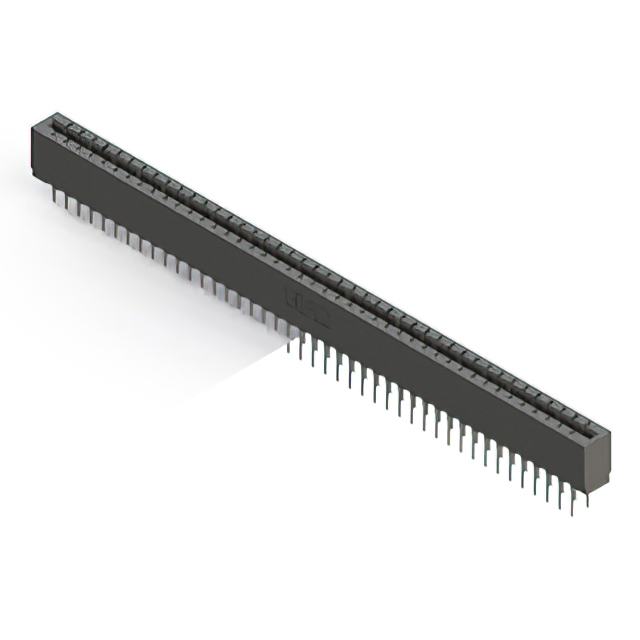

717-086-522-201

Active

EDAC Inc.

CARD EDGE CONNECTOR, 86 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, PRESS FIT TERMINAL, LOCKING, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

717-086-522-201

Active

EDAC Inc.

CARD EDGE CONNECTOR, 86 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, PRESS FIT TERMINAL, LOCKING, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	717-086-522-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	86
Number of Positions/Bay/Row [custom]	43
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Press-Fit
Termination Rows	2

717-086 Series

Part	Contact Material	Number of Rows	Termination Rows	Read Out	Number of Positions/Bay/Row [custom]	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Pitch [x]	Pitch [x]	Termination	Mounting Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Color	Contact Finish	Card Type	Gender
EDAC Inc. 717-086-540-201	Copper Alloy	2	2	Dual	43	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic	0.156 in	3.96 mm	Press-Fit Wire Wrap	Through Hole	86	0.76 Ám	30 Áin	Black	Gold	Non Specified - Dual Edge	Female
EDAC Inc. 717-086-522-201	Copper Alloy	2	2	Dual	43	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic	0.156 in	3.96 mm	Press-Fit	Through Hole	86	0.76 Ám	30 Áin	Black	Gold	Non Specified - Dual Edge	Female
EDAC Inc. 717-086-541-201	Copper Alloy	2	2	Dual	43	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic	0.156 in	3.96 mm	Press-Fit Wire Wrap	Through Hole	86	0.76 Ám	30 Áin	Black	Gold	Non Specified - Dual Edge	Female
EDAC Inc. 717-086-525-201	Copper Alloy	2	2	Dual	43	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic	0.156 in	3.96 mm	Press-Fit	Through Hole	86	0.76 Ám	30 Áin	Black	Gold	Non Specified - Dual Edge	Female
EDAC Inc. 717-086-520-201	Copper Alloy	2	2	Dual	43	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic	0.156 in	3.96 mm	Press-Fit	Through Hole	86	0.76 Ám	30 Áin	Black	Gold	Non Specified - Dual Edge	Female
EDAC Inc. 717-086-545-201	Copper Alloy	2	2	Dual	43	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic	0.156 in	3.96 mm	Press-Fit Wire Wrap	Through Hole	86	0.76 Ám	30 Áin	Black	Gold	Non Specified - Dual Edge	Female
EDAC Inc. 717-086-560-201	Copper Alloy	2	2	Dual	43	Cantilever Make Before Break	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Polyester Thermoplastic	0.156 in	3.96 mm	Press-Fit	Through Hole	86	0.76 Ám	30 Áin	Black	Gold	Non Specified - Dual Edge	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 11.76

Description

General part information

717-086 Series

86 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
