TPH-80
ActiveEaton - Electronics Division
FUSE CRTRDGE 80A 170VDC CYLINDR
TPH-80
ActiveEaton - Electronics Division
FUSE CRTRDGE 80A 170VDC CYLINDR
Description
General part information
TPH-80

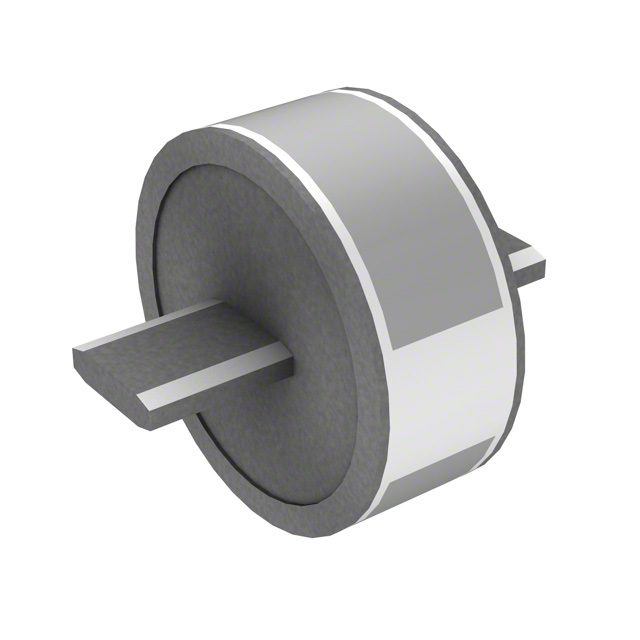

80A 170 VDC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | TPH-80 |
|---|---|
| Applications | Telecom |
| Approval Agency | UR, CE |
| Breaking Capacity | 100 kA |
| Current Rating | 80 A |
| Fuse Type | Cartridge |
| Mounting Type | Bolt Mount |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Size / Dimension Diameter | 1.5 in |
| Size / Dimension Length | 1.252 in |
| Voltage Rating - DC | 170 VDC |
