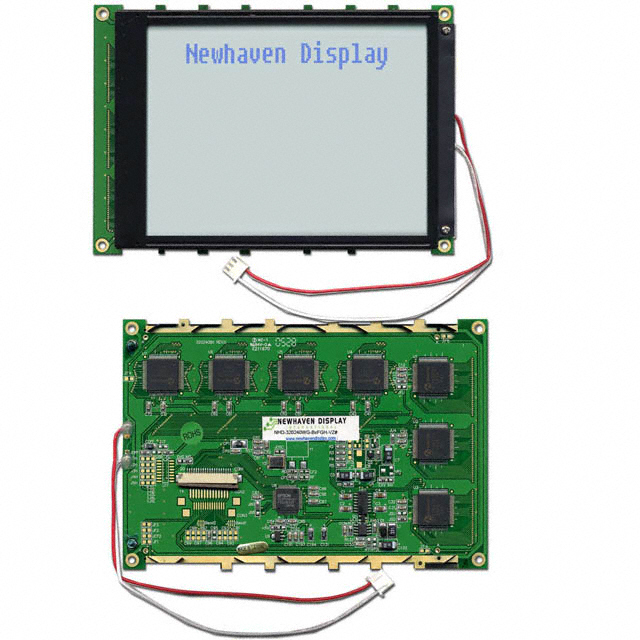

NHD-320240WG-BXFGH-VZ#
ObsoleteNewhaven Display Intl
LCD MOD GRAPH 320X240 WH TRANSFL
Deep-Dive with AI
Search across all available documentation for this part.
NHD-320240WG-BXFGH-VZ#
ObsoleteNewhaven Display Intl
LCD MOD GRAPH 320X240 WH TRANSFL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-320240WG-BXFGH-VZ# |
|---|---|
| Background Color | White |
| Backlight | CCFL |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Pitch [x] | 0.36 mm |
| Dot Pitch [y] | 0.36 mm |
| Dot Pixels | QVGA |
| Dot Pixels [x] | 320 pixels |
| Dot Pixels [y] | 240 pixels |
| Dot Size [x] | 0.34 mm |
| Dot Size [y] | 0.34 mm |
| Graphics Color | Gray |
| Interface | Parallel, 8-Bit |
| Viewing Area [x] | 122 mm |
| Viewing Area [y] | 92 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NHD-320240WG-BXFGH-VZ#
Graphic LCD Display Module Transflective Gray STN - Super-Twisted Nematic Parallel, 8-Bit 320 x 240 (QVGA)
