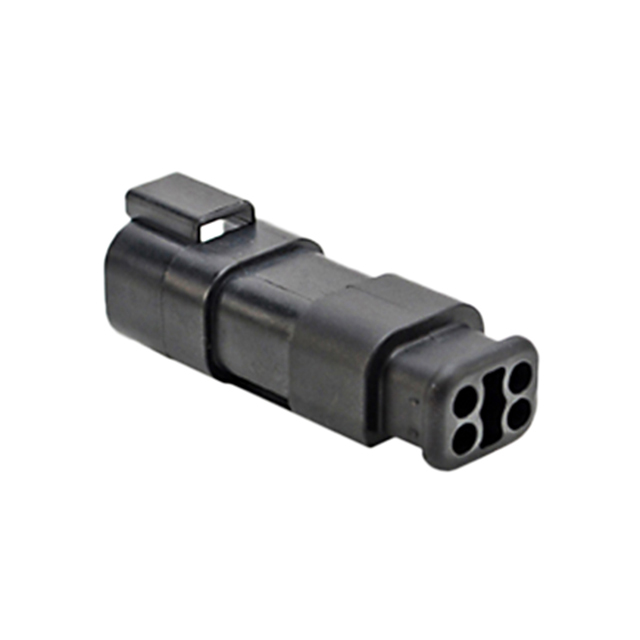

Specification	AT04-4P-SR02BLK

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Strain Relief
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C

AT04-4P Series

Part	Note	Operating Temperature (Max)	Operating Temperature (Min)	Contact Type	Fastening Type	Features	Mounting Type	Contact Termination	Number of Positions	Connector Type	Insulation Material	Number of Rows	Color	Contact Shape	Shrouding	Current Rating	Insulation Color	Contact Material	Contact Finish - Mating	Insulation Height	Ingress Protection	Termination	Style	Number of Positions Loaded	Applications
McGill Microwave Systems AT04-4P-CL06	Contacts Not Included	125 °C	-55 °C	Male Pin	Latch Holder	Mounting Flange Sealed	Panel Mount	Crimp	4	Receptacle	Thermoplastic	2	Black
McGill Microwave Systems AT04-4P-GRN	Contacts Not Included	125 °C	-55 °C	Male Pin	Latch Holder	Sealed	Free Hanging (In-Line)	Crimp	4	Receptacle	Thermoplastic	2	Green
McGill Microwave Systems AT04-4P-ORG	Contacts Not Included	125 °C	-55 °C	Male Pin	Latch Holder	Sealed	Free Hanging (In-Line)	Crimp	4	Receptacle	Thermoplastic	2	Orange
McGill Microwave Systems AT04-4P-SR02RED		125 °C	-55 °C	Male Pin	Latch Holder	Cap (Cover) IP68 IP69K Reduced Wire Seals Strain Relief	Free Hanging (In-Line)	Crimp	4	Receptacle	Thermoplastic	2	Red
McGill Microwave Systems AT04-4P-BM04		125 °C	-55 °C	Male Pin	Latch Holder	Board Lock Potting Wall	Through Hole		4	Receptacle	Thermoplastic	2		Circular	Shrouded - 4 Wall	13 A	Black	Copper Alloy	Nickel	0.835 in	IP67	Solder	Board Cable/Wire	All	Automotive General Purpose Industrial
McGill Microwave Systems AT04-4P-RED	Contacts Not Included	125 °C	-55 °C	Male Pin	Latch Holder	Sealed	Free Hanging (In-Line)	Crimp	4	Receptacle	Thermoplastic	2	Red
McGill Microwave Systems AT04-4P-YEL	Contacts Not Included	125 °C	-55 °C	Male Pin	Latch Holder	Sealed	Free Hanging (In-Line)	Crimp	4	Receptacle	Thermoplastic	2	Yellow
McGill Microwave Systems AT04-4P-SR01ORG		125 °C	-55 °C	Male Pin	Latch Holder	Cap (Cover) IP68 IP69K Sealed Strain Relief	Free Hanging (In-Line)	Crimp	4	Receptacle	Thermoplastic	2	Orange
McGill Microwave Systems AT04-4P-L012	Contacts Not Included	125 °C	-55 °C	Male Pin	Latch Holder	Mounting Flange Sealed	Panel Mount	Crimp	4	Receptacle	Thermoplastic	2	Gray
McGill Microwave Systems AT04-4P-WHT	Contacts Not Included	125 °C	-55 °C	Male Pin	Latch Holder	Sealed	Free Hanging (In-Line)	Crimp	4	Receptacle	Thermoplastic	2	White
