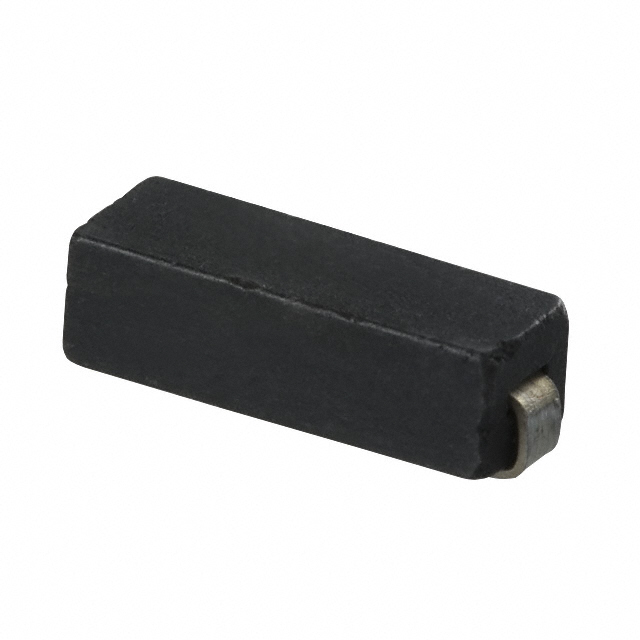

35F0121-1SR-10
ActiveLaird Technologies EMI
FERRITE BEAD 82 OHM 2SMD 1LN
35F0121-1SR-10
ActiveLaird Technologies EMI
FERRITE BEAD 82 OHM 2SMD 1LN
Description
General part information
35F0121-1SR-10
82 Ohms @ 100 MHz 1 Power Line Ferrite Bead 2-SMD, J-Lead 10A 1mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | 35F0121-1SR-10 |
|---|---|
| Current Rating (Max) | 10 A |
| DC Resistance (DCR) (Max) | 1 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.12 in |
| Impedance | 82 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 2-SMD, J-Lead |
| Size / Dimension Length | 0.335 in |
| Size / Dimension Width | 0.12 in |
