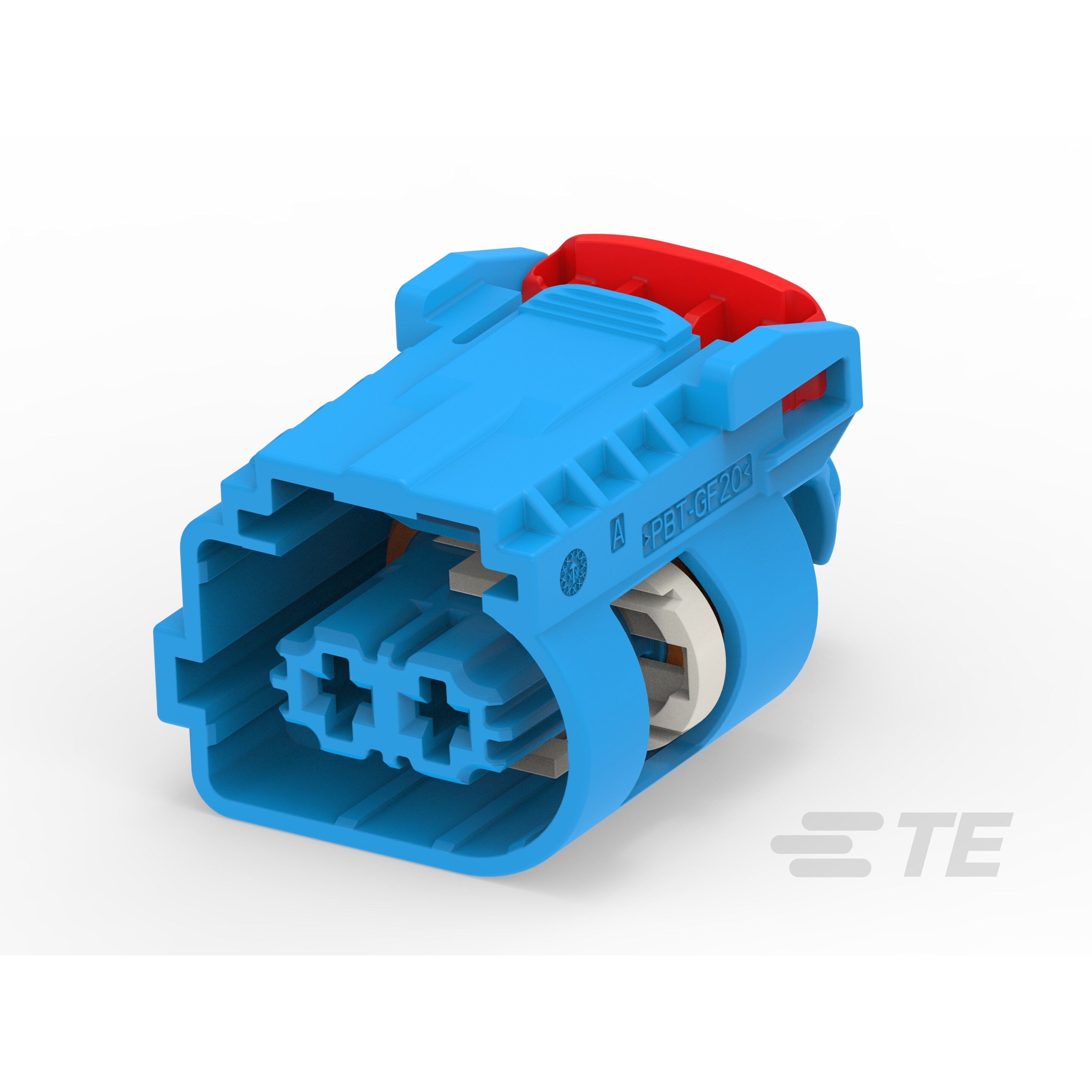

Specification	2425741-3

Color	Blue
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Sealed
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Operating Temperature (Max)	130 °C
Operating Temperature (Min)	-40 °C
Pitch	0.236 in

AMP MCP 2.8 Series

...

Part	Insulation Material	Contact Termination	Mounting Type	Connector Type	Fastening Type	Number of Positions	Contact Type	Pitch	Row Spacing	Operating Temperature (Max)	Operating Temperature (Min)	Color	Number of Rows	For Use With/Related Products	Accessory Type	Pin or Socket	Contact Finish Thickness	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Finish	Type	Features	Cable Termination	Wire Type
TE Connectivity AMP Connectors 8-968975-1	Glass Filled Polybutylene Terephthalate (PBT)	Crimp	Free Hanging (In-Line)	Receptacle	Latch Lock	21	Female Socket	0.197 in	0.217 in	120 °C	-40 °C	Brown	3
TE Connectivity AMP Connectors 2-968853-3
TE Connectivity AMP Connectors 6-968974-1	Glass Filled Polybutylene Terephthalate (PBT)	Crimp	Free Hanging (In-Line)	Receptacle	Latch Lock	18	Female Socket	0.197 in	0.217 in	100 °C	-30 °C	Blue	3
TE Connectivity AMP Connectors 2356721-1						22								MCP Series	Terminal Position Assurance (TPA)
TE Connectivity AMP Connectors 1-2141859-3		Crimp														Socket	118.1 µin	24 AWG	19.5 AWG	Silver
TE Connectivity AMP Connectors 1241388-2		Crimp														Socket	31.5 µin	20.5 AWG	17 AWG	Gold	Stamped
TE Connectivity AMP Connectors 2-968857-3		Crimp														Socket	118.1 µin	18 AWG	13 AWG	Silver	Stamped
TE Connectivity AMP Connectors 1-1718562-1	Polybutylene Terephthalate (PBT)	Crimp	Free Hanging (In-Line)	Housing for Female Insert	Latch Lock	4	Female Socket	0.236 in		130 °C	-40 °C	Black	1									Terminal Position Lock (TPA)
TE Connectivity AMP Connectors 3-1394766-2			Panel Mount Snap-In	Receptacle	Latch Lock	18	Tab	0.197 in	0.217 in			Natural	3							Gold			IDC	Discrete
TE Connectivity AMP Connectors 1-968859-3		Crimp														Socket	118.1 µin	13 AWG	11 AWG	Silver
