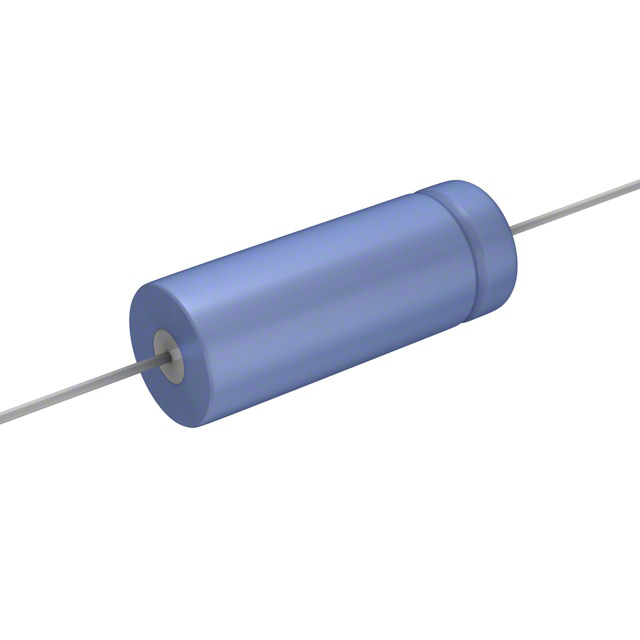

Specification	WBR250-16A

Applications	General Purpose
Capacitance	250 µF
ESR (Equivalent Series Resistance)	2.1 Ohm
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can, Axial
Polarization	Polar
Ripple Current	135.7 mA, 118 mA
Size / Dimension Diameter	0.34 in
Size / Dimension Length	0.88 in
Tolerance (Negative)	10 %
Tolerance (Positive)	150 %
Voltage - Rated	16 V
