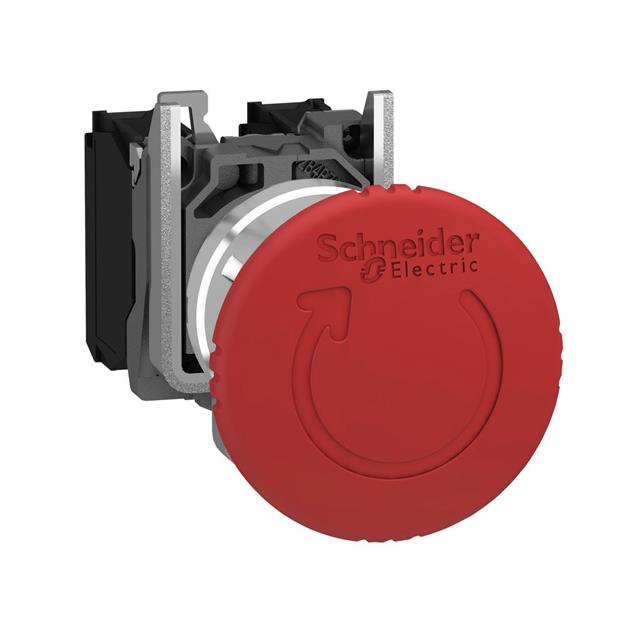

XB4BS8444
ActiveEMERGENCY STOP SWITCH, DPST, TURN TO RELEASE, SCREW CLAMP, 6 A, 120 VAC, 600 V
XB4BS8444
ActiveEMERGENCY STOP SWITCH, DPST, TURN TO RELEASE, SCREW CLAMP, 6 A, 120 VAC, 600 V
Description
General part information
XB4BS8444
XB4BS8444 is a Harmony XB4 Ø 22mm metal control and signalling unit combines simplicity of installation, modern standard and flush mounted design, flexibility and robustness with a high level of customization to meet most industrial applications.
Technical Specifications
Parameters and characteristics for this part
| Specification | XB4BS8444 |
|---|---|
| Circuit | DPST-NC |
| Current Rating | 550 mA, 6 A |
| Ingress Protection Description | Waterproof, Water Resistant, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP69, IP67, IP66 |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Panel Cutout Diameter | 22 mm |
| Panel Cutout Shape | Circular |
| Reset Operation | Twist |
| Switch Function | On-Off |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 125 V |
