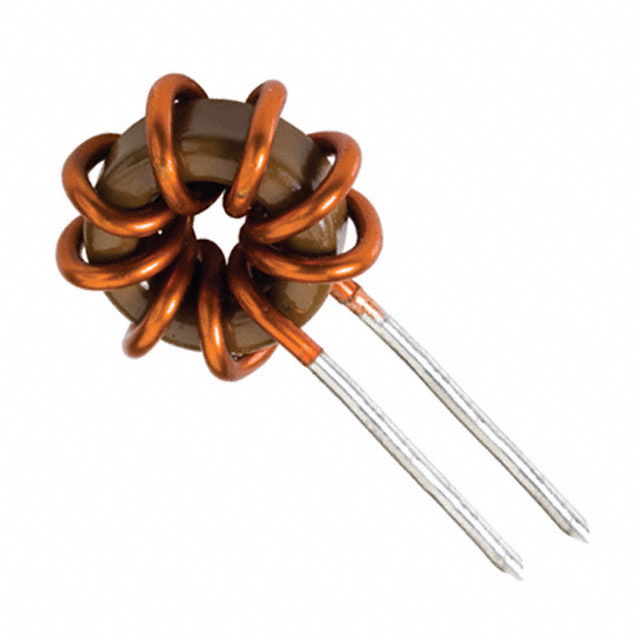

HTPT66R-152K
1.5 µH Shielded Toroidal Inductor 13.7 A 3.6mOhm Max Radial, Vertical (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | HTPT66R-152K |
|---|---|
| Current - Saturation (Isat) | 13.3 A |
| Current Rating | 13.7 A |
| DC Resistance (DCR) (Max) | 3.6 mOhm |
| Inductance | 1.5 µH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Iron |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial, Vertical (Open) |
| Shielding | Shielded |
| Size / Dimension Diameter | 0.66 in |
| Size / Dimension Width | 0.36 in |
| Tolerance | 10 % |
| Type | Toroidal |
