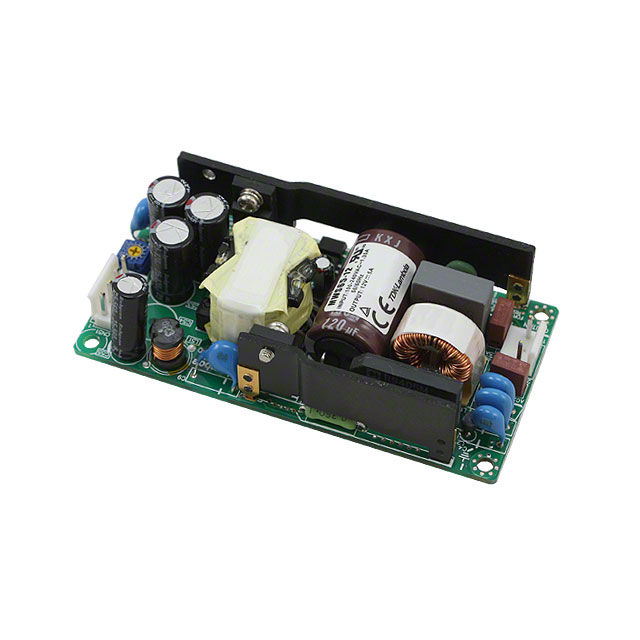

MWS65-24
ObsoleteTDK Corporation
AC/DC CONVERTER 24V 67W
MWS65-24
ObsoleteTDK Corporation
AC/DC CONVERTER 24V 67W
Description
General part information
MWS65-24
Open Frame AC DC Converters 1 Output 24V 85 ~ 265 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | MWS65-24 |
|---|---|
| Applications | Medical |
| Approval Agency | CE |
| Current - Output 1 | 2.8 A |
| Efficiency | 86 % |
| Features | DC Input Capable, Universal Input, Adjustable Output |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 67 W |
| Size / Dimension Height | 1 in |
| Size / Dimension Length | 4 in |
| Size / Dimension Width | 2 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 265 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 24 V |
