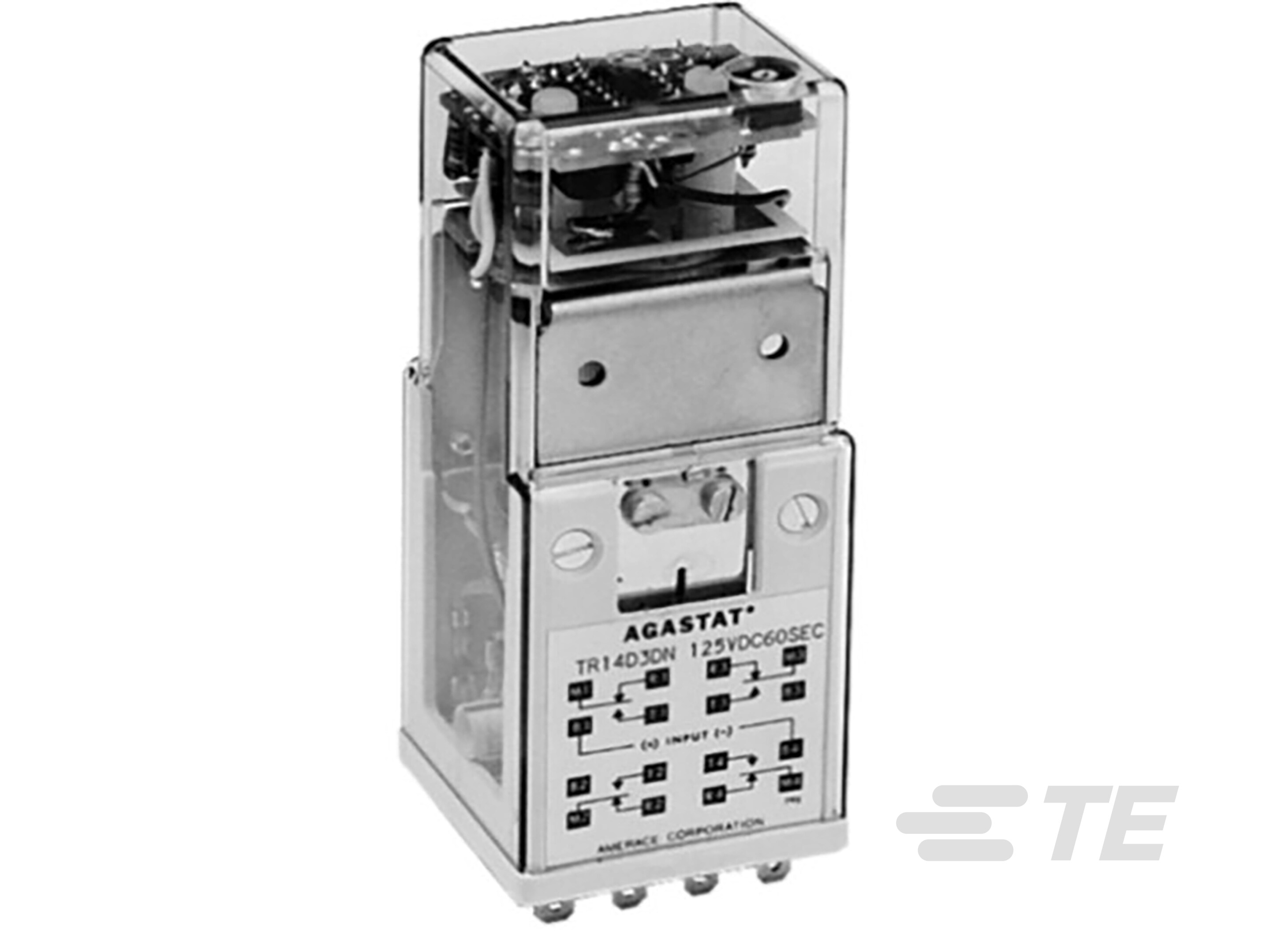

ETR14I3B004=RLY,NUC,ON,4P,120-1-1423177-4

TR14D3AN

Unknown
TE Connectivity AMP Connectors

TR14D3AN=RLY,ON,4PDT,INT.POT.,

Find alt
ETR14I3B004=RLY,NUC,ON,4P,120-1-1423177-4

TR14D3AN

Unknown
TE Connectivity AMP Connectors

TR14D3AN=RLY,ON,4PDT,INT.POT.,

Find alt

Description

General part information

TR14D3AN

Time Delay Relay, DC, 4 Form C 4PDT-CO, 10 A Contact Rating, Socket Mount, 50 °C [122 °F]

Technical Specifications

Parameters and characteristics for this part

SpecificationTR14D3AN
Circuit4PDT (4 Form C)
Contact Rating (Current)10 A
Delay Time (Maximum)3 Sec
Delay Time (Minimum)0.15 Sec
FunctionOn-Delay
Mounting TypeSocketable
Relay TypeMechanical Relay
Termination StylePlug In
Timing Adjustment MethodScrewdriver Slot
Timing Initiate MethodInput Voltage
Voltage - Supply215 VDC
