PBC06SGAN

Active

Sullins Connector Solutions

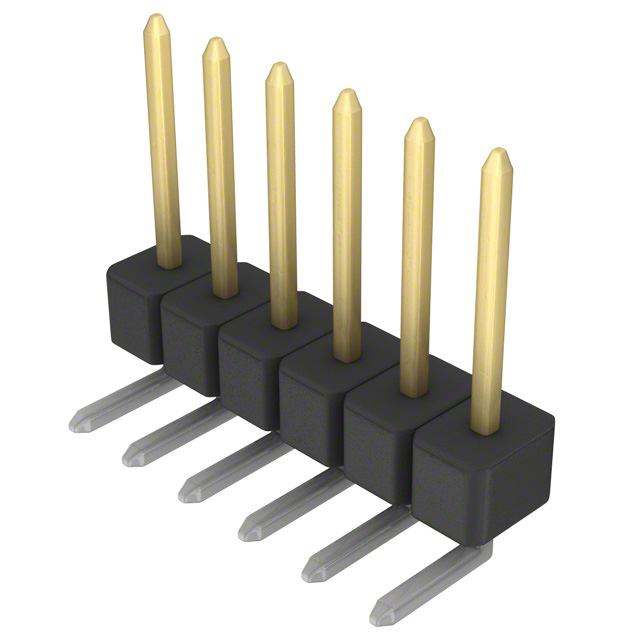

CONN HEADER R/A 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PBC06SGAN

Active

Sullins Connector Solutions

CONN HEADER R/A 6POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBC06SGAN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.56 mm
Insulation Height	0.14 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PBC06 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Finish - Post	Number of Positions Loaded	Style	Current Rating (Amps)	Insulation Material	Mounting Type	Termination	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Type	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Material Flammability Rating	Fastening Type	Shrouding	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Contact Length - Mating [x]	Contact Length - Mating	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Sullins Connector Solutions PBC06SADN	10 çin	0.25 çm	6	0.1 in	2.54 mm	Square	Tin	All	Board to Board Cable	3 A	Polybutylene Terephthalate (PBT)	Through Hole	Solder	Gold	125 °C	-65 ░C	1	Male Pin	Black	10.67 mm	0.42 in	Breakaway Header	UL94 V-0	Push-Pull	Unshrouded	0.75 in	19.05 mm	0.1 in	2.54 mm	0.23 in	5.84 mm	Phosphor Bronze	2.54 µm	100 µin
Sullins Connector Solutions PBC06SFBN	10 çin	0.25 çm	6	0.1 in	2.54 mm	Square	Tin	All	Board to Board Cable	3 A	Polybutylene Terephthalate (PBT)	Through Hole	Solder	Gold	125 °C	-65 ░C	1	Male Pin	Black			Breakaway Header	UL94 V-0	Push-Pull	Unshrouded	0.638 in	16.21 mm	0.1 in	2.54 mm	0.318 "		Phosphor Bronze	2.54 µm	100 µin	0.22 in	5.58 mm	8.08 mm
Sullins Connector Solutions PBC06DGAN	10 çin	0.25 çm	12	0.1 in	2.54 mm	Square	Tin	All	Board to Board Cable	3 A	Polybutylene Terephthalate (PBT)	Through Hole Right Angle	Solder	Gold	125 °C	-65 ░C	2	Male Pin	Black			Breakaway Header	UL94 V-0	Push-Pull	Unshrouded			0.24 in	6.1 mm	0.318 "		Phosphor Bronze	2.54 µm	100 µin	0.1 in	2.54 mm	8.08 mm	2.54 mm	0.1 in
Sullins Connector Solutions PBC06SFAN	10 çin	0.25 çm	6	0.1 in	2.54 mm	Square	Tin	All	Board to Board Cable	3 A	Polybutylene Terephthalate (PBT)	Through Hole	Solder	Gold	125 °C	-65 ░C	1	Male Pin	Black	3.05 mm	0.12 in	Breakaway Header	UL94 V-0	Push-Pull	Unshrouded	0.538 "	13.67 mm	0.1 in	2.54 mm	0.318 "		Phosphor Bronze	2.54 µm	100 µin			8.08 mm
Sullins Connector Solutions PBC06SGAN	10 çin	0.25 çm	6	0.1 in	2.54 mm	Square	Tin	All	Board to Board Cable	3 A	Polybutylene Terephthalate (PBT)	Through Hole Right Angle	Solder	Gold	125 °C	-65 ░C	1	Male Pin	Black			Breakaway Header	UL94 V-0	Push-Pull	Unshrouded			0.14 in	3.56 mm	0.318 "		Phosphor Bronze	2.54 µm	100 µin	0.1 in	2.54 mm	8.08 mm
Sullins Connector Solutions PBC06DAEN	10 çin	0.25 çm	12	0.1 in	2.54 mm	Square	Tin	All	Board to Board Cable	3 A	Polybutylene Terephthalate (PBT)	Through Hole	Solder	Gold	125 °C	-65 ░C	2	Male Pin	Black			Breakaway Header	UL94 V-0	Push-Pull	Unshrouded	0.85 in	21.59 mm	0.1 in	2.54 mm	0.23 in	5.84 mm	Phosphor Bronze	2.54 µm	100 µin	0.52 "	13.21 mm		2.54 mm	0.1 in
Sullins Connector Solutions PBC06DBEN	10 çin	0.25 çm	12	0.1 in	2.54 mm	Square	Tin	All	Board to Board Cable	3 A	Polybutylene Terephthalate (PBT)	Through Hole Right Angle	Solder	Gold	125 °C	-65 ░C	2	Male Pin	Black			Breakaway Header	UL94 V-0	Push-Pull	Unshrouded			0.24 in	6.1 mm	0.23 in	5.84 mm	Phosphor Bronze	2.54 µm	100 µin	0.5 in	12.7 mm		2.54 mm	0.1 in
Sullins Connector Solutions PBC06DAAN	10 çin	0.25 çm	12	0.1 in	2.54 mm	Square	Tin	All	Board to Board Cable	3 A	Polybutylene Terephthalate (PBT)	Through Hole	Solder	Gold	125 °C	-65 ░C	2	Male Pin	Black	3.05 mm	0.12 in	Breakaway Header	UL94 V-0	Push-Pull	Unshrouded	0.45 "	11.43 mm	0.1 in	2.54 mm	0.23 in	5.84 mm	Phosphor Bronze	2.54 µm	100 µin				2.54 mm	0.1 in
Sullins Connector Solutions PBC06SBDN	10 çin	0.25 çm	6	0.1 in	2.54 mm	Square	Tin	All	Board to Board Cable	3 A	Polybutylene Terephthalate (PBT)	Through Hole Right Angle	Solder	Gold	125 °C	-65 ░C	1	Male Pin	Black	10.16 mm	0.4 in	Breakaway Header	UL94 V-0	Push-Pull	Unshrouded			0.14 in	3.56 mm	0.23 in	5.84 mm	Phosphor Bronze	2.54 µm	100 µin
Sullins Connector Solutions PBC06SFCN	10 çin	0.25 çm	6	0.1 in	2.54 mm	Square	Tin	All	Board to Board Cable	3 A	Polybutylene Terephthalate (PBT)	Through Hole	Solder	Gold	125 °C	-65 ░C	1	Male Pin	Black	8.13 mm	0.32 in	Breakaway Header	UL94 V-0	Push-Pull	Unshrouded	0.738 "	18.75 mm	0.1 in	2.54 mm	0.318 "		Phosphor Bronze	2.54 µm	100 µin			8.08 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.76
		10	$ 0.64
		100	$ 0.55
		500	$ 0.49
		1000	$ 0.46
		5000	$ 0.41
		10000	$ 0.41

Description

General part information

PBC06 Series

Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)
