K150-3112-00
ActiveJacob GmbH
WADI ONE CABLE GLAND WITH NPT TH
K150-3112-00
ActiveJacob GmbH
WADI ONE CABLE GLAND WITH NPT TH
Description
General part information
K150-3112-00

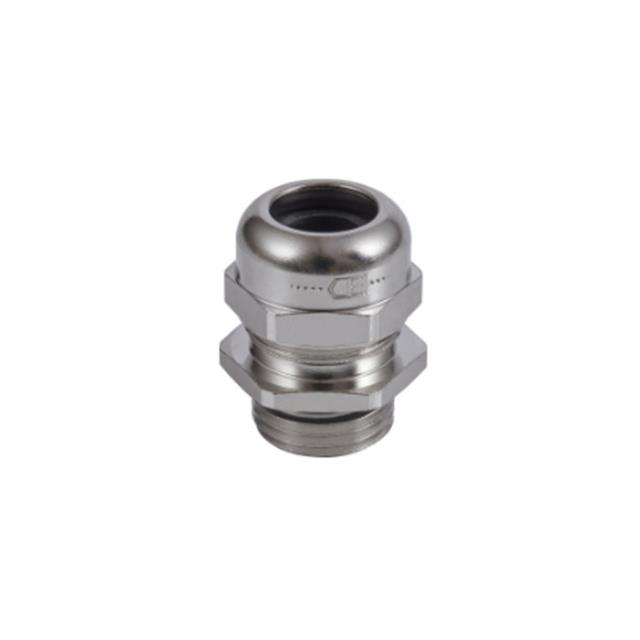

Cable Gland Brass, Nickel Plated 1 1/2" NPT Silver
Technical Specifications
Parameters and characteristics for this part
| Specification | K150-3112-00 |
|---|---|
| Color | Silver |
| Ingress Protection Description | Water Resistant, Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP66, IP69, IP68 |
| Material | Nickel Plated, Brass |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Outside Cable Diameter (Max) | 1.614 in |
| Outside Cable Diameter (Min) | 1.22 in |
| Thread Length | 0.591 in |
| Thread Size (Diameter) | 1.5 in |
| Thread Type | NPT |
| Type | Cable Gland |
