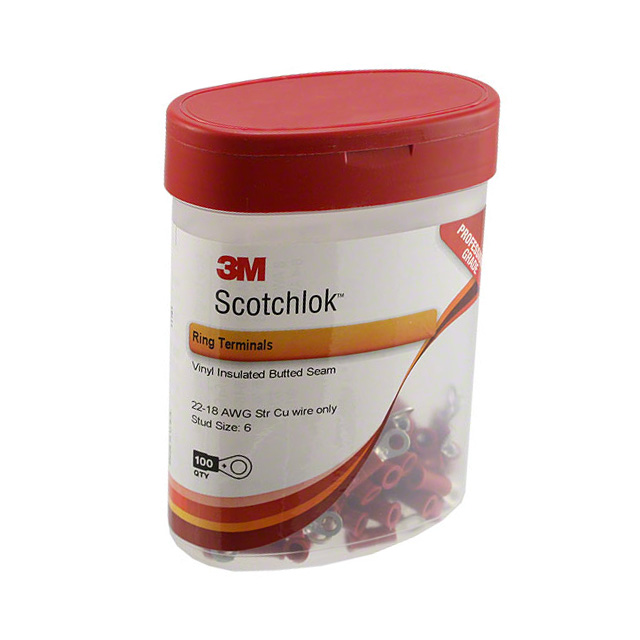

MV18-6R/SX-BOTTLE
Active3M
CONN RING CIRC 18-22AWG #6 100PC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MV18-6R/SX-BOTTLE
Active3M
CONN RING CIRC 18-22AWG #6 100PC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MV18-6R/SX-BOTTLE | MV18 Series |
|---|---|---|
| Color | Red | Red |
| Contact Finish | - | Tin |
| Contact Material | - | ETP, Copper |
| Features | Brazed Seam | Brazed Seam |
| Insulation | Insulated | Insulated |
| Insulation Diameter | 3.68 mm | 3.68 mm |
| Insulation Diameter [diameter] | 0.145 " | 0.145 " |
| Length - Overall | - | 22.86 - 28.7 mm |
| Length - Overall | - | 0.9 in |
| Length - Overall [x] | 20.32 mm | 20.32 - 22.35 mm |
| Length - Overall [x] | 0.8 in | 0.8 - 1.13 in |
| Length - Ring Center to Termination | - | 0.25 in |
| Length - Ring Center to Termination | - | 6.35 mm |
| Length - Ring Center to Termination | - | 0.29 in |
| Length - Ring Center to Termination | - | 7.37 mm |
| Length - Termination | - | 0.45 in |
| Length - Termination | - | 11.43 mm |
| Material - Insulation | Vinyl | Vinyl |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Stud/Tab Size | 6 Stud | 0.25 - 10 Stud |
| Stud/Tab Size | - | 8 Stud, 3/8 Stud |
| Terminal Type | Circular | Snap, Spring, Circular, Standard |
| Termination | Crimp | Crimp |
| Thickness | 0.03 in | 0.03 in |
| Thickness | 0.76 mm | 0.76 mm |
| Width - Outer Edges | - | 7.87 - 8.64 mm |
| Width - Outer Edges | - | 0.34 in |
| Width - Outer Edges [y] | 0.25 " | 0.25 - 0.56 " |
| Width - Outer Edges [y] | 6.35 mm | 6.35 - 14.22 mm |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG | 17.5 AWG |
MV18 Series
FORK / SPADE TONGUE TERMINAL, SCOTCHLOK SERIES, 22 AWG, 18 AWG, M3.5, #6
| Part | Insulation Diameter | Insulation Diameter [diameter] | Length - Ring Center to Termination [x] | Length - Ring Center to Termination [x] | Contact Material | Color | Stud/Tab Size | Length - Overall [x] | Length - Overall [x] | Features | Contact Finish | Termination | Insulation | Mounting Type | Terminal Type | Material - Insulation | Wire Gauge [Max] | Wire Gauge [Min] | Width - Outer Edges [y] | Width - Outer Edges [y] | Length - Termination [x] | Length - Termination [x] | Thickness | Thickness | Stud/Tab Size | Length - Overall | Width - Outer Edges | Width - Outer Edges | Length - Overall | Length - Ring Center to Termination | Length - Ring Center to Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3.68 mm | 0.145 " | 0.25 in | 6.35 mm | Copper, ETP | Red | 6 Stud | 0.88 in | 22.35 mm | Brazed Seam | Tin | Crimp | Insulated | Free Hanging (In-Line) | Snap, Spring | Vinyl | 22 AWG | 17.5 AWG | 0.25 " | 6.35 mm | 0.45 in | 11.43 mm | ||||||||||
3.68 mm | 0.145 " | Copper, ETP | Red | 6 Stud | 0.8 in | 20.32 mm | Brazed Seam | Tin | Crimp | Insulated | Free Hanging (In-Line) | Circular | Vinyl | 22 AWG | 17.5 AWG | 0.25 " | 6.35 mm | 0.03 in | 0.76 mm | ||||||||||||
3.68 mm | 0.145 " | 0.25 in | 6.35 mm | Copper, ETP | Red | 0.85 " | 21.59 mm | Brazed Seam | Tin | Crimp | Insulated | Free Hanging (In-Line) | Standard | Vinyl | 22 AWG | 17.5 AWG | 0.45 in | 11.43 mm | 8 Stud | ||||||||||||
3.68 mm | 0.145 " | 0.25 in | 6.35 mm | Copper, ETP | Red | 4 Stud | 0.88 in | 22.35 mm | Brazed Seam | Tin | Crimp | Insulated | Free Hanging (In-Line) | Snap, Spring | Vinyl | 22 AWG | 17.5 AWG | 0.25 " | 6.35 mm | 0.45 in | 11.43 mm | ||||||||||
3.68 mm | 0.145 " | Copper, ETP | Red | 10 Stud | 0.93 in | Brazed Seam | Tin | Crimp | Insulated | Free Hanging (In-Line) | Circular | Vinyl | 22 AWG | 17.5 AWG | 0.31 in | 0.03 in | 0.76 mm | 23.62 mm | 7.87 mm | ||||||||||||
3.68 mm | 0.145 " | Copper, ETP | Red | 4 Stud | 0.8 in | 20.32 mm | Brazed Seam | Tin | Crimp | Insulated | Free Hanging (In-Line) | Circular | Vinyl | 22 AWG | 17.5 AWG | 0.25 " | 6.35 mm | 0.03 in | 0.76 mm | ||||||||||||
3.68 mm | 0.145 " | Copper, ETP | Red | 10 Stud | 0.93 in | Brazed Seam | Tin | Crimp | Insulated | Free Hanging (In-Line) | Circular | Vinyl | 22 AWG | 17.5 AWG | 0.31 in | 0.03 in | 0.76 mm | 23.62 mm | 7.87 mm | ||||||||||||
3.68 mm | 0.145 " | Copper, ETP | Red | 0.25 Stud | Brazed Seam | Tin | Crimp | Insulated | Free Hanging (In-Line) | Circular | Vinyl | 22 AWG | 17.5 AWG | 0.47 in | 11.94 mm | 0.03 in | 0.76 mm | ||||||||||||||
3.68 mm | 0.145 " | Red | 6 Stud | 0.8 in | 20.32 mm | Brazed Seam | Crimp | Insulated | Free Hanging (In-Line) | Circular | Vinyl | 22 AWG | 17.5 AWG | 0.25 " | 6.35 mm | 0.03 in | 0.76 mm | ||||||||||||||
3M MV18-8FK | 3.68 mm | 0.145 " | Copper, ETP | Red | Brazed Seam | Tin | Crimp | Insulated | Free Hanging (In-Line) | Standard | Vinyl | 22 AWG | 17.5 AWG | 0.45 in | 11.43 mm | 8 Stud | 22.86 mm | 8.64 mm | 0.34 in | 0.9 in | 0.29 in | 7.37 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 92.74 | |
Description
General part information
MV18 Series
Ring Terminal Connector 6 Stud Circular 18-22 AWG Crimp
